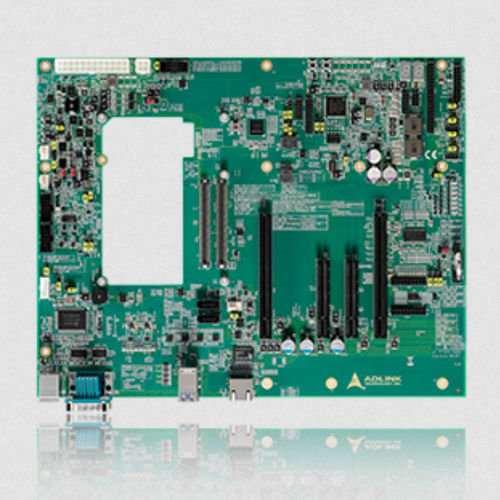

COM Express carrier board Express-BASE7

ATX

The Express-BASE7 is an ATX size COM Express Type 7 reference carrier board. Together with the COM Express Type 7 module of your choice and off the shelf add-on cards, you can quickly emulate the functionality of your desired end product for software development and hardware verification. The Express-BASE7 offers one PCIe x16 Express slot with 10GBASE-KR signals for 10GbE Adapter card (Optical and Copper type, up to four ports) and GbE with SDP pin that can be used for communication related application development. NC-SI and Lite version IPMI BMC can be used for remote management related application development. One PCI Express x16 slot, two PCI Express x8 slots, Serial ATA, USB 3.0/2.0 can be used for the system development require many more peripherals.
