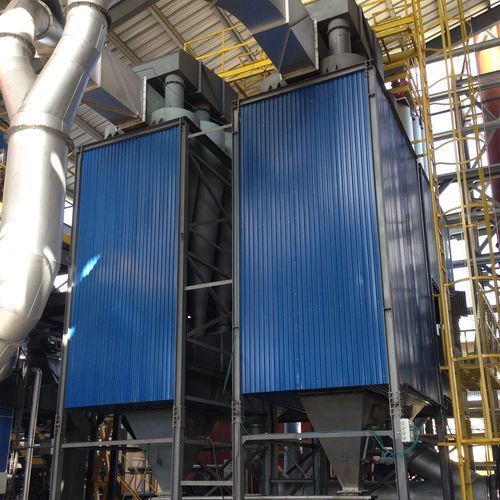

Electrostatic dust collector ReCyclone® EH
reverse air cleaningwith electrostatic separator

electrostatic dust collector
electrostatic dust collector
electrostatic dust collector
electrostatic dust collector
Add to favorites
Compare this product


Characteristics

Technology
electrostatic
Backflushing
reverse air cleaning
Other characteristics
with electrostatic separator
Output

Max.: 60,000 m³/h
(2,118,880.0033 ft³/h)

Min.: 5,000 m³/h
(176,573.3336 ft³/h)

Description

Recent adoption of electrostatic recirculation in the same cyclone system has successfully proven to further reduce particle emissions, even in the [1;5]μm particle size range, assuring future regulation compliance, particularly where legal limits are very strict. A DC high voltage is applied to the recirculator, allowing the recirculation of very fine nanometric particles, more resistant to centrifugal forces, to the cyclone collector. After having been separated in the recirculator and concentrated in the recirculation flow, electrically charged fine particles are attracted by the cyclone walls, while agglomerating with larger particles entering the system – both promoting their easier capture. Since particles are not captured on the walls of the recirculator, contrary to ESPs, ReCyclone® systems avoid the problem of dust accumulation and condensation. Additionally, ReCyclone® EH systems have low sensitivity to either low or high dust electrical resistivity while the high voltage required power is only 10 to 15% of that used in ESPs.
