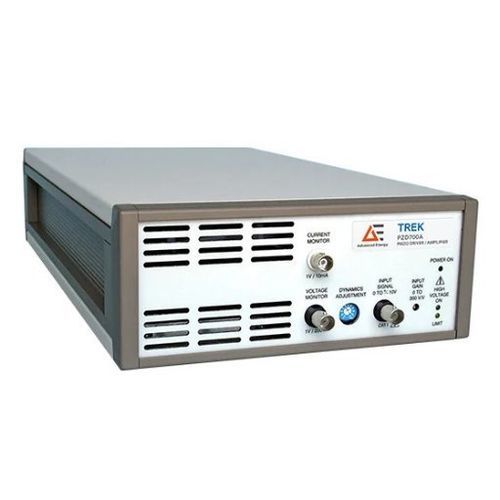

Power amplifier PZDvoltagehigh-voltagefor piezo-electric actuators
Add to favorites
Compare this product
Characteristics
- Type
- power, voltage
- Other characteristics
- high-voltage, for piezo-electric actuators, low-noise, precision, high-power
- Voltage
Min.: -5,000 V
Max.: 5,000 V
- Power
Min.: 50 W
(0.07 hp)Max.: 1,000,000 W
(1,359.62 hp)
Description
Overview
Advanced Energy's Trek PZD series of high-voltage amplifiers delivers precision DC and AC drive for demanding industrial and research applications. Systems in this family provide outputs typically up to ±5,000 V and are optimized for driving high-voltage capacitive loads with low noise and high efficiency.
Applications
Technical documentation (selected)
Key features / technical specifications
Advanced Energy's Trek PZD series of high-voltage amplifiers delivers precision DC and AC drive for demanding industrial and research applications. Systems in this family provide outputs typically up to ±5,000 V and are optimized for driving high-voltage capacitive loads with low noise and high efficiency.
Applications
- Electroporation and bioelectrics
- Inkjet nozzle drive and microfluidics
- Medical imaging systems
- Piezo actuator and nanopositioning stages
Technical documentation (selected)
- Trek 5/80 Data Sheet
- Trek 609E-6 Data Sheet
- Trek 623B Data Sheet
- Trek PZD700A Data Sheet
- Amplifier Selection Calculator | Step-By-Step Procedure (Application Note)
- Choosing the Correct Capacitive Load (Application Note)
- Trek Product Catalog
Key features / technical specifications
- Output voltage: typically up to ±5,000 V
- Power family: greater than 50 W
- Intended use: driving high-voltage capacitive loads
- Series: Trek PZD series — proprietary power conversion topology for high efficiency and low noise
- Typical industries: aerospace, medical, materials research, semiconductor and industrial manufacturing
- Product status: Active
