Power amplifier Trek series

voltageopticalcharge

Overview
Advanced Energy's 400 W amplifier family provides reliable, precision high-voltage amplification for laboratory and industrial applications requiring fast response and tight voltage control. Models include high-speed bipolar and high-voltage options suited to electro-optics, electrostatics, and instrumentation.

Product family

• The 400 W family comprises Trek 10/40A-HS, Trek 20/20C, and Trek 20/20C-HS.

Highlighted models

• Trek 10/40A-HS — high-speed bipolar amplifier; output voltage range 0 to ±10,000 V; optimized for fast rise times and high-frequency response; compact form factor.

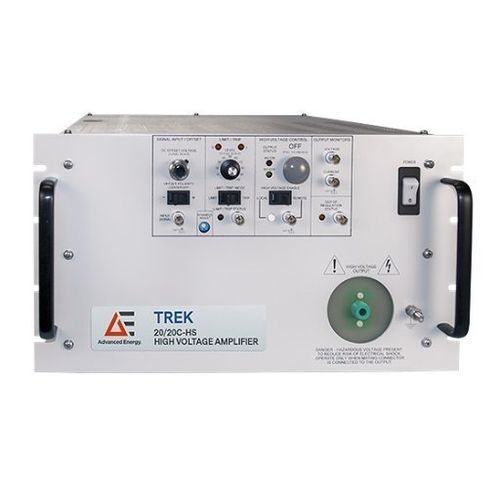

• Trek 20/20C-HS — high-voltage amplifier; delivers up to 400 W with a maximum output voltage of ±20,000 V; designed for precision voltage control and fast response with enhanced signal integrity.

Applications

• Semiconductor processing
• High-voltage reliability testing
• Precision instrumentation
• Electrostatics
• Electro-optics
• Electrophoresis
• Industrial automation

Technical documentation and resources (selected)

• Trek 10/40A-HS Data Sheet (PDF)
• Trek 20/20C-HS Data Sheet (PDF)
• Amplifier Selection Calculator | Step-By-Step Procedure (Application Note, PDF)
• Choosing the Correct Capacitive Load (Application Note, PDF)
• Trek Product Catalog (Catalog, PDF)

Technical characteristics / specifications

• Rated family output power: 400 W (family classification)
• Models: Trek 10/40A-HS; Trek 20/20C; Trek 20/20C-HS
• Trek 10/40A-HS — high-speed bipolar amplifier; output voltage 0 to ±10,000 V; high bandwidth and fast rise times; compact.
• Trek 20/20C-HS — high-voltage amplifier; up to 400 W output; maximum output ±20,000 V; precision voltage control and fast response.
• Typical application domains: semiconductor processing, HV reliability testing, precision instrumentation, electrostatics, electro-optics, electrophoresis, industrial automation.
• Series/Status: Active
• Available documents: data sheets and application notes (PDF)
