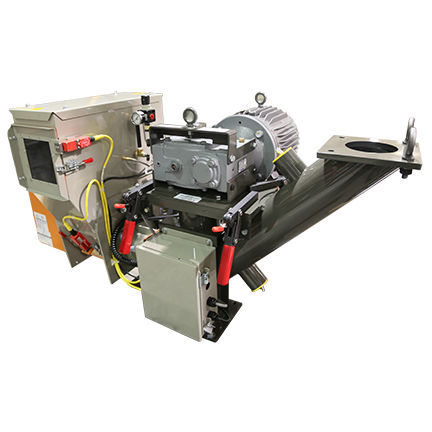

Feed hopper TFH series

powderfor feeding systems

TFH Series fluff feed hoppers are designed to feed a percentage of the fluff directly back into the extruder throat. The unique dual-stage design ensures that the fluff is mixed with the virgin material above the extruder throat. Each auger is independently adjustable and can be set to follow the extruder screw speed by monitoring a tachometer signal from the extruder. TFH fluff feed hoppers are designed to feed edge trim and roll scrap back into an extruder at a maximum rate of 30% of extruder output. The TFH-HP is designed for those applications where scrap re-feed greater than 30% is common. Standard Features • NEMA 12 enclosure • IR compensation • Up to 25% maximum re-feed rate1 • Dependable auger metering • Machine-mount flange • Mild steel material contact surfaces • Independently-adjustable vertical mix auger and horizontal fluff metering auger • Fluff hopper with bottom clean-out door, includes safety switch • Individual speed adjustments using variable-frequency drives • Digital speed potentiometers • Fluff hopper bridge breaker • Extruder following signal isolator • Horizontal and vertical drive NEMA MG-31 AC inverter-duty motors • Optical level sensor with delay timer for field connection to grinder feed rolls and alarm device
