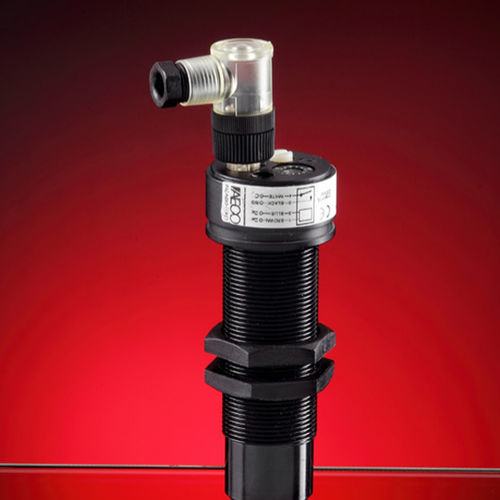

Capacitive proximity sensor SC30P - RE25 T1
cylindricalM30with relay output

capacitive proximity sensor
capacitive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Shape
cylindrical
Diameter
M30
Output signal
with relay output
Material
glass
Protection level
IP67
Other characteristics
programmable, with adjustable time delay
Measuring range

Max.: 25 mm
(0.98 in)

Min.: 0 mm
(0 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

This proximity sensor belongs to the capacitive sensor family, it supplies a signal to the external load which can be delayed up to 10 min. when any material solid or liquid (water, glass, wood, metal, coffe, powders etc.) come into the sensing area, it is used principally as a level control. This model is completly programmable regarding the delay in energization and deenergization with open or closed output, the sensor does in fact contain a 1A 220V chengeover relay. Due to its versatility, programmability and high power output compared to a normal electronic sensor, the stocking of product for the wholesaler is simplified as is the adaptability of the switch to any application This sensor can be used with the protection housing SCM-R which is of POM and therefore satisfies the most severe abrasion resistance requirements. When used as a level control, this housing allows for the sensor to be substituted whenever required.
