Pilot burner
natural gasdirect firednatural convection

pilot burner
pilot burner
Add to favorites
Compare this product


Characteristics

Type
pilot
Power source
natural gas
Firing
direct fired
Convection
natural convection
Applications
bar
Head length
standard

Description

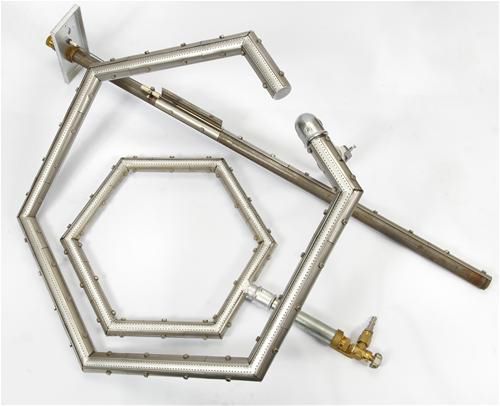

Formated labo bar burners Those burners are based on the straigth 'labo' bar burner technology and designed further the forme requests. They are developped to complet the standard ring burner range. CHARACTERISTICS All geometric formes (U, square, hexagonal, octogonal...) all flame positions, Until 4 flame paralel lines, Natural gas and propane between 100mbar to 1.75 bar. Iron steel or stainless steel material. Options : Flame failure system by thermocouple valve for any gas rating under 120 kW (410,000Btu). Flame control with automatic ignition and flame failure surveillance by ionisation mainly or UV probe for all gas rating. Automatism and controls. Support frame. APPLICATIONS Ignition or pilot bar burner. Manufacturing tool preheating. Flaming for plastic or textile indsutry. Food industry.
