Atmospheric burner natural gasdirect firedheating
Add to favorites
Compare this product
Characteristics
- Type
- atmospheric
- Power source
- natural gas
- Firing
- direct fired
- Applications
- heating, bar
- Power
120 kW
Description

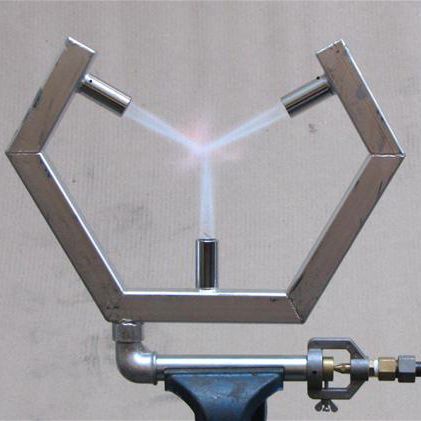

Formed flame nozzle bar burners.
The formed flame nozzle bar burners are designed to bring the maximum rate on an heating unformed area.
CHARACTERISTICS
All geometric formes (U, square, hexagonal, octogonal...)
Natural gas and propane between 300mbar to 2.5 bar.
Iron steel or stainless steel material.
Supplied with ignition or pilote bar burners.
Options :
Flame failure system by thermocouple valve for any gas rating under 120 kW (410,000Btu).
Flame control with automatic ignition and flame failure surveillance by ionisation mainly or UV probe for all gas rating.
Automatism and controls.
Support frame.
APPLICATIONS
Tank with centered bellow purging valve.
Heaters for chimical industry.
Miscelleanus industrial burnings.
