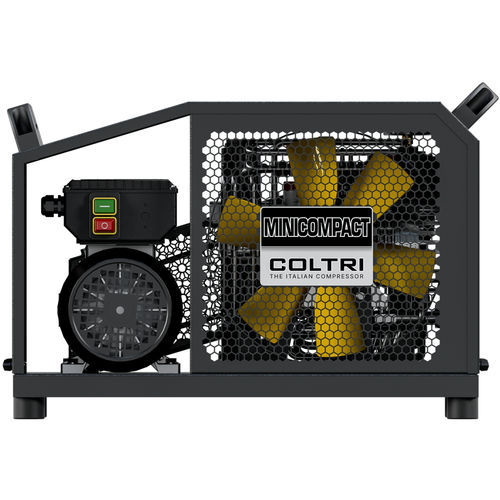

Mini compressor MINI COMPACTpistonbreathing airnitrogen
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- breathing air, nitrogen, helium, for oxygen
- Power source
- electrically-powered
- Portability
- portable
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Applications
- cylinder, for fireplaces
- Voltage
- 400 V, 230 V
- Other characteristics
- compact, high-pressure, high-performance, small, with integrated filtration, mini, belt-driven
- Pressure
Max.: 330 bar
(4,786.25 psi)230 bar, 330 bar
(3,335.87 psi, 4,786.25 psi)Min.: 0 bar
(0 psi)- Flow
100 m³/h
(3,531.47 ft³/h)- Power
2.2 kW, 3 kW
(2.99 hp, 4.08 hp)- Length
592 mm
(23 in)- Width
380 mm
(15 in)- Height
427 mm
(17 in)- Weight
47 kg
(103.6 lb)
Description
The MINI COMPACT range of compressors are very popular in the marine industry thanks in part to their reinforced,
more enveloping chassis. All equipped with the popular MCH 6 pumping unit, they are available with gasoline
or Eléctrico motors, both three-phase and single-phase. The equipment includes a filling connection for flexible
hose with working pressure from 232 to 330 bar. Optional extras include a pressure maintenance valve, automatic
condensate drain and auto-stop, all of which allow the product to be tailored to the user's needs. Frames are also
available in stainless steel.
