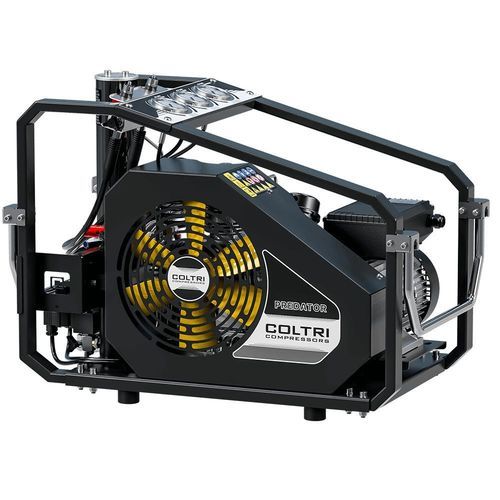

Reciprocating piston compressor Predator

breathing airelectricportable

Overview
The Predator is a portable high-pressure breathing-air compressor by Coltri from the Portables line, engineered to fill breathing-air cylinders with continuous, standards-compliant air in diving, industrial and emergency applications.

Key components and construction

• 3-stage high-pressure pumping unit machined from an aluminum monoblock for precision and compactness
• Nebulizer lubrication with oil-immersed shank and low-pressure constant-flow pump coupled to the shaft
• Suction filter: 10 µ (micron)
• Pipes, fittings and nuts in AISI 316 stainless steel
• Forged aluminum connecting rods and forged steel crankshaft with hardened rings
• Safety valves including a PED-certified final safety valve

Electric motor

• Motor transmits motion to the pumping unit via belt
• Available in single-phase or three-phase versions from 3 kW

Purification system Maxifilter
The Maxifilter purification system uses a combined molecular sieve and activated carbon cartridge to remove moisture, oil vapours and contaminants. Installed after the 2nd and 3rd stage separators and before the pressure-maintenance valve to provide a primary moisture barrier. Filter capacity (inlet air at 20°C, 200 bar): 890 m³.

Automatic condensate drain (with timer)
Automatic timed condensate drainage simplifies operation and reduces maintenance by removing accumulated water every 7 minutes. Includes:

• 2 timers
• 2 solenoid valves

Autostop system (Autostop)
Automatic shutdown stops the compressor when the final pressure is reached to save energy and reduce wear. Includes:

• 1 pressure switch
• Available final pressure options: 230 bar (safety valve 250 bar) and 300 bar (safety valve 330 bar)

Frame and handling
Steel frame with scratch-resistant powder coating (Black RAL 9005) and carrying handles for safe movement and easy maintenance access.

Standard equipment

• 2 cylinder connections selectable from: DRV DIN 232, DRV DIN 300 or DRV INT/YOKE 232 bar
• 2 filling hoses, 1.2 m long
• Pressure-holding (pressure-maintenance) valve
• Maxifilter purification system
• Carrying handles; frame colour Black RAL 9005

Compatible accessories (examples)

• Monitor C
• Remote fill panel (single pressure / dual pressure)
• DRV cylinder fittings (DIN 232 / DIN 300 / INT/YOKE 232 bar)
• Filling hose sets: 1.5 m / 2 m / 3 m (7/16)

Technical specifications

• Pumping stages: 3-stage high-pressure unit, aluminum monoblock
• Suction filter: 10 µ (micron)
• Piping/fittings: AISI 316 stainless steel
• Connecting rods: forged aluminum; crankshaft: forged steel with hardened rings
• Lubrication: nebulizer lubrication with oil-immersed shank and low-pressure constant-flow pump
• Purification: Maxifilter (molecular sieve + activated carbon), capacity 890 m³ at 20°C and 200 bar
• Automatic condensate drain: cycles every 7 minutes; includes 2 timers and 2 solenoid valves
• Autostop: automatic shutdown at final pressure; includes 1 pressure switch
• Final pressure versions: 230 bar (safety valve 250 bar) and 300 bar (safety valve 330 bar)
• Standard cylinder connections: DRV DIN 232 / DRV DIN 300 / DRV INT/YOKE 232 bar
• Standard filling hoses: two 1.2 m hoses
• Frame: steel with scratch-resistant powder coating, Black RAL 9005, with carrying handles
• Safety: safety valves including a PED-certified final safety valve
• Motor: single-phase or three-phase options from 3 kW
