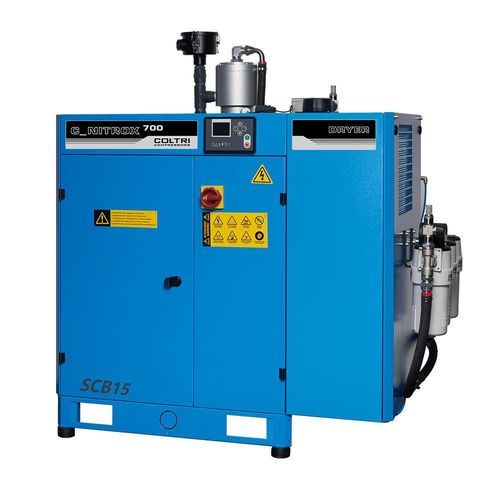

Air compressor unit C-NITROX 700

screwstationaryhigh-pressure

C-NITROX 700 is a Heavy Duty industrial screw compressor that delivers air at a pressure of 12 bar to an OXYSEP 7-15-40 OXYGEN membrane that separates nitrogen and oxygen, up to a maximum of 40 percent oxygen. The enriched air can be compressed to 232 bar in conjunction with a high-pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted up to 40% by means of a valve accessible directly on the top of the compressor. The oxygen analyzer allows the correct percentage to be verified by adjusting it using the appropriate valve. Standard Equipment - Electrical cabinet - Automatic condensate drain - 2 analyzers - Thermostat - 1 OXYSEP 7-15-40 OXYGEN Membrane % O2 36% 40% 40% l/min HP compressor to be connected (Heavy Duty 750) 750 l/min 45 m3/h 26.5 cfm (Heavy Duty 650) 650 l/min 39 m3/h 23 cfm (Heavy Duty 450) 450 l/min 27 m3/h 15.9 cfm Notes: operating pressure 232 bar / when using compressors with lower flow rates, the maximum oxygen percentage is always guaranteed. - Engine: Electric three-phase 400 V - 50 Hz - Scope: 2,000 l/min - 120 m3/h - 70.6 CFM - Operating pressure: 10 bar - 145 PSI - Net weight (appr.): 296 kg - 652.5 lb - Dimensions (W x D x H): 117 x 78 x 129 cm - 46 x 30.7 x 50.7 in Technical Specifications / Features: - Heavy Duty industrial screw compressor - Delivers air at 12 bar to OXYSEP 7-15-40 OXYGEN membrane - Oxygen enrichment up to 40% - Compatible with high-pressure compressor for up to 232 bar - Adjustable oxygen output via top valve - Oxygen analyzer included - Standard equipment: electrical cabinet, automatic condensate drain, 2 analyzers, thermostat, OXYSEP membrane - Engine: Electric three-phase 400 V - 50 Hz - Scope: 2,000 l/min - 120 m3/h - 70.6 CFM - Operating pressure: 10 bar - 145 PSI - Net weight: 296 kg - 652.5 lb - Dimensions: 117 x 78 x 129 cm - 46 x 30.7 x 50.7 in
