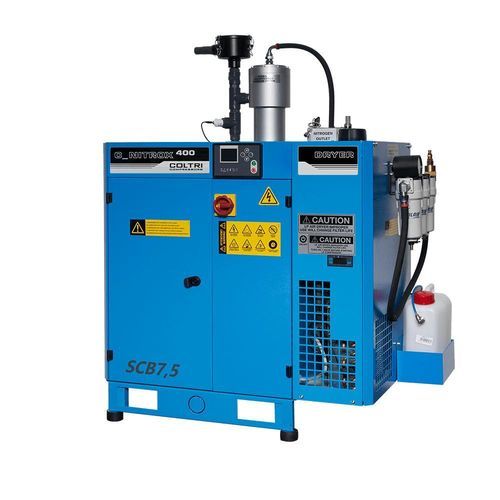

Screw compressor C-NITROX 400

airelectrically-poweredstationary

C-NITROX 400 is a Heavy Duty industrial screw compressor that delivers air at a pressure of 10 bar to an OXYSEP 7-15-40 OXYGEN membrane that separates nitrogen and oxygen, up to a maximum of 40 percent oxygen. The enriched air can be compressed to 232 bar in conjunction with a high-pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted up to 40 percent by means of a valve accessible directly on the top of the compressor. The oxygen analyzer allows the correct percentage to be verified by adjusting it using the appropriate valve. Standard Equipment - Electrical cabinet - Automatic condensate drain - 2 analyzers - Thermostat - 1 OXYSEP 7-15-40 OXYGEN Membrane % O2 32% 38% 40% l/min HP compressor to be connected (Heavy Duty 650) 650 l/min 39 m³/h 23 cfm (Heavy Duty 450) 450 l/min 27 m³/h 15.9 cfm (Efficient/Prime line) 315 l/min 18.9 m³/h 11.1 cfm Notes: operating pressure 232 bar / when using compressors with lower flow rates, the maximum oxygen percentage is always guaranteed. - Engine: Electric three-phase 400 V - 50 Hz - Scope: 1,070 l/min - 64.2 m³/h - 37.7 CFM - Operating pressure: 10 bar - 145 PSI - Net weight (appr.): 199 kg - 439 lb - Dimensions (W x D x H): 98.5 x 72 x 129 cm - 38.8 x 28.3 x 50.8 in Technical Specifications / Features: - Heavy Duty industrial screw compressor - Delivers air at 10 bar to OXYSEP 7-15-40 OXYGEN membrane - Separates nitrogen and oxygen up to 40% oxygen - Enriched air can be compressed to 232 bar with high-pressure compressor - Adjustable oxygen percentage up to 40% - Oxygen analyzer for verification and adjustment - Standard equipment includes electrical cabinet, automatic condensate drain, 2 analyzers, thermostat, and OXYSEP membrane - Compatible with various HP compressors (Heavy Duty 650, Heavy Duty 450, Efficient/Prime line) - Engine: Electric three-phase 400 V - 50 Hz - Scope: 1,070 l/min - 64.2 m³/h - 37.7 CFM - Operating pressure: 10 bar - 145 PSI - Net weight: 199 kg - 439 lb - Dimensions: 98.5 x 72 x 129 cm - 38.8 x 28.3 x 50.8 in
