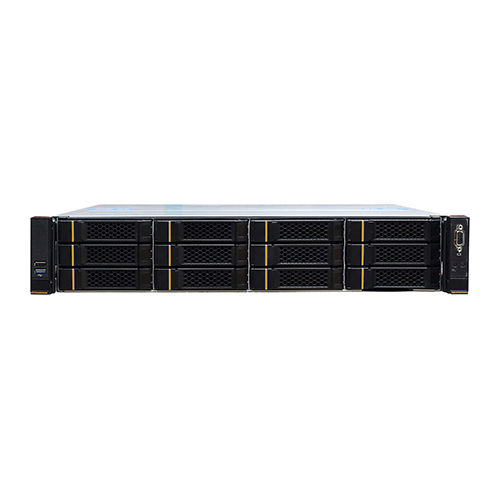

Storage server BIS-5221 series
networkGPUconsole

storage server
storage server
storage server
storage server
storage server
Add to favorites
Compare this product


Characteristics

Type
storage, network, GPU, console
Mounting
2U
Processor
Intel® Xeon
Other characteristics
Ethernet, USB 3.0

Description

2U Rackmount Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP / Whitley platform) and Intel® C621A/C627A PCH Hybrid Storage Server, support 32x DDR4(up to 3200MHz) per system, supporting 2x OCP 3.0 Network Cards, 12x bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1 Console, 2x M.2, Redundant PSU. BIS-5221 is a 2U/12 bays Hybrid Storage System with dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake / Whitley platform). Refreshed CPU microarchitecture provides Higher performance & IPC, and 8-memory channels (16 RDIMMs per CPU) support high memory bandwidth & capacity. Also, with total 64 lanes PCIe 4.0 (16GT/s) per CPU, BIS-5221 provides flexible and scalable I/O scalability, supporting up to 2x OCP 3.0 network cards and multiple standard PCIe slots. From the system view, BIS-5221 features tool-less HDD/SDD tray and PCIe slots, which could support up to 2 GPU, and edge-cutting thermal airduct design solution. All above provides customer the most reliable system for application of AI computing/cloud computing/security solution. Last but not the least, BIS-5221 also features flexible customization for data center/ISV/CSP on hardware/firmware/BIOS/software.

Catalogs

No catalogs are available for this product.

See all of AEWIN Technologies Co., Ltd.‘s catalogs
