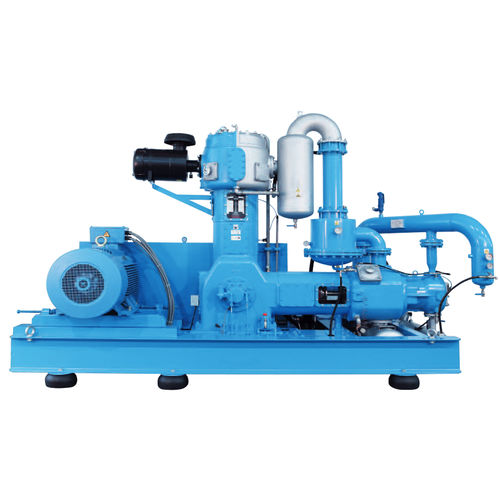

Piston compressor L series airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Applications
- for PET plastic bottle manufacturing
- Voltage
- 400 V, 380 V
- Other characteristics
- with refrigerant dryer, high-pressure, rugged, water-cooled, electric, medium-pressure, two-stage, three-stage, with integrated filtration, skid-mounted, with frequency control, belt-driven
- Pressure
Min.: 20 bar
(290.08 psi)Max.: 40 bar
(580.15 psi)- Flow
Min.: 790 m³/h
(27,898.59 ft³/h)Max.: 2,170 m³/h
(76,632.83 ft³/h)- Power
Min.: 132 kW
(179.47 hp)Max.: 355 kW
(482.67 hp)
Description
New design and development
Increased internal volume in the interconnecting pipework with reduced pulsation losses.
New separator and intercooler design, increased efficiency.
New piston / Cylinder assemblies with reduced losses.
New piston rings with optimized design, increased output capacity.
Optimized package and coating, integrated equipements;
drains, oil cooler…
More volume for same power
Increased High Pressure air capacity FAD.
Decreased specific shaft power.
Technical modification without prior notice.
