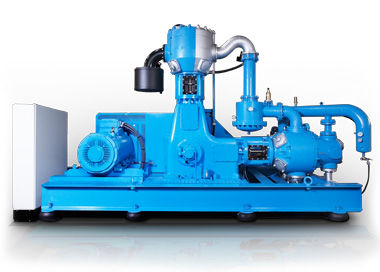

Piston compressor CE seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Applications
- for PET plastic bottle manufacturing
- Voltage
- 400 V, 380 V
- Other characteristics
- with refrigerant dryer, high-pressure, rugged, water-cooled, electric, medium-pressure, two-stage, three-stage, with integrated filtration, with frequency control, belt-driven
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 20 bar
(290.08 psi)- Flow
Max.: 3,200 m³/h
(113,006.93 ft³/h)Min.: 225 m³/h
(7,945.8 ft³/h)- Power
Max.: 550 kW
(747.79 hp)Min.: 45 kW
(61.18 hp)
Description
High energy efficiency :
Longer component life, less friction, low speed : 340 rpm to 670 rpm. Less wearng parts as described above.
Easy access on the machine for maintenance.
Reliability and easy maintenance.
Less time for maintenance, equals more.
Easy and quick installation due to the use of anti-vibration mounts, no specific foundation is required : low investment costs for installation.
Lowest maintenance costs
Fewest moving parts. Lowest speed. Only two cross-head assemblies, two connecting rods and associated bearings. No pston rod packing on 3rd stage, which eliminate sealing against 40 bar. Single acting 2nd and 3rd stage, requiring few valves. Smaller 2 nd and 3 rd stages horizontal to optimize the piston ring life. Few valves and reduced energy losses.
