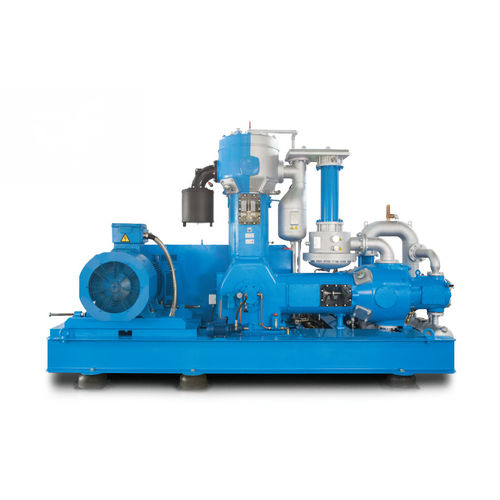

Piston compressor M seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial, for food applications
- Applications
- for PET plastic bottle manufacturing
- Voltage
- 400 V, 380 V
- Other characteristics
- water-cooled, high-pressure, rugged, electric, medium-pressure, with refrigerant dryer, two-stage, three-stage, with integrated filtration, skid-mounted, belt-driven, with frequency control
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 20 bar
(290.08 psi)- Flow
150 m³/h, 185 m³/h, 225 m³/h
(5,297.2 ft³/h, 6,533.21 ft³/h, 7,945.8 ft³/h)- Power
30 kW, 37 kW, 45 kW
(40.79 hp, 50.31 hp, 61.18 hp)
Description
Air Quality according to ISO 8573. Class 2 or 1.4.1. Class 0 compliant.
Motor service factor = 1.0.
M, CE, L models, all on antivibration mounts.
Technical modification without prior notice. 2019 06 24.
