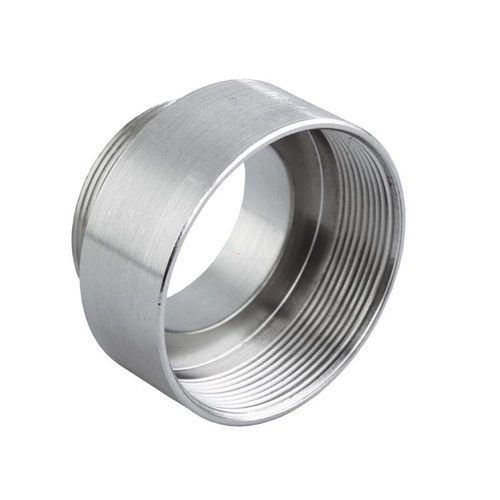

Thread adapter 3645.07.12for cables
Add to favorites
Compare this product
Characteristics
- Connector type
- thread
- Applications
- for cables
- Diameter
Max.: 40 mm
(1.575 in)Min.: 12 mm
(0.472 in)- Length
Max.: 8 mm
(0.31 in)Min.: 6 mm
(0.24 in)
Description
Outer thread Pg
Inner thread metric
without O-Ring
MaterialNickel-plated brass
Operation temperature-40°C / +200°C
Protection classIP 54
Entry threadIP 68, if the entry thread is sealed
Thread outsidePg 7
Internal threadM12x1.5
Diameter A14 mm
Dimension H9 mm
Thread length L6 mm
Dispatch100
