Injection current probe ICP-622
testruggedbroadband

injection current probe
injection current probe
Add to favorites
Compare this product


Characteristics

Type
test
Measured value
injection current
Other characteristics
rugged, broadband, insertion, IEC

Description

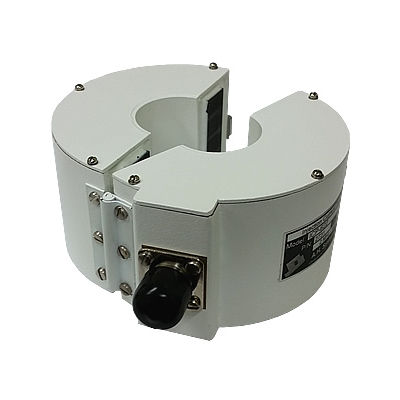

This injection current probe is used to couple large RF currents from 1 MHz to 500 MHz into signal and power circuits to meet specific testing requirements. Designed to meet the specifications of ISO 11452-4 and IEC 61000-4-6 standards for automotive BCI testing. Features 1 MHz to 500 MHz Individually Calibrated Rugged Construction Split Type Clamp-on Design MIL-STD-461 CS114, CS115, CS116 Meets ISO 11452-4:2005 and IEC 61000-4-6 Product Details Injection Current Probes are used to inductively couple large RF currents into conductors passing through their aperture. The conductors are signal, control and power circuits of equipment under test for conducted susceptibility or immunity. This injection current probe is used to couple large RF currents from 1 MHz to 500 MHz. The CW input power rating of this injection current probe is 200 watts for a duration of 30 minutes. An injection current probe acts as a multiple turn primary and a single turn secondary transformer, when placed around a power line or signal lead. Thus it provides a (nominal) 50ohm load to the susceptibility signal source, while providing a lower susceptibility signal source impedance when placed in series with the cable under test. An injection current probe is characterized by its insertion loss (dB). The insertion loss describes the inefficiency of the clamp relative to direct injection into a 50ohm circuit.
