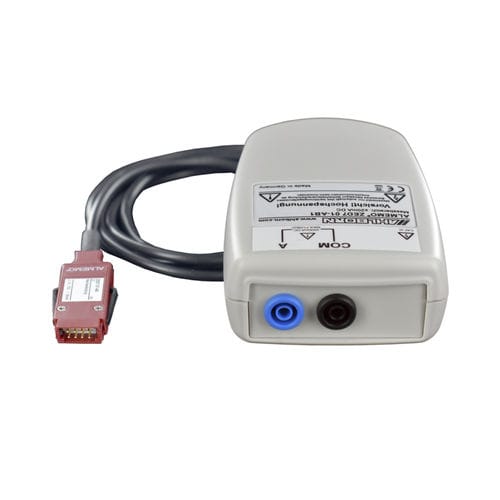

AC voltage measuring module ZAD903AB3
powerelectrical parameterscurrent

AC voltage measuring module
AC voltage measuring module
AC voltage measuring module
AC voltage measuring module
Add to favorites
Compare this product


Characteristics

Measured value
AC voltage, current, power, electrical parameters

Description

Fast measuring module for AC voltage, AC current, AC power •For acquiring the true root mean square (RMS) value of a sinusoidal AC signal •Sampling rate of 1000 mops •Overvoltage proof measuring input. Galvanically isolated up to 6 kV Technical data and functions •Inexpensive monitoring of several AC voltage signals with a large number of measuring modules •Monitoring the supply voltage and the current consumption during switch-on and switch-off processes of machines, motors, and other consumers. •Checking switches and circuit breakers using fast switching cycles. •Measuring the response time of electronic switches •Power calculation (effective power, power factor) through the parallel measurement of voltage and electricity in one measuring module. •Monitoring of the electrical parameters voltage, electricity and power through inverter in photovoltaic systems with parallel documentation of the environmental parameters like temperature, global radiation and other meteorological measuring variables. •Recording of quick power changes during loading tests with quick load changes. •Power measurement of 1-phase user (230 V AC) through a touch-proof Schuko-socket outlet adapter (accessory). •Recording of the power consumption of mobile machines (cleaning machines, high-pressure cleaner amongst others) and of domestic devices (refrigerators, radiant heater, ovens amongst others) additionally to the physical measuring variables like temperature, pressure, air velocity, flow rate amongst others.
