Climate chamber THV-1500 (A~F)

thermostatictemperaturehumidity

Overview

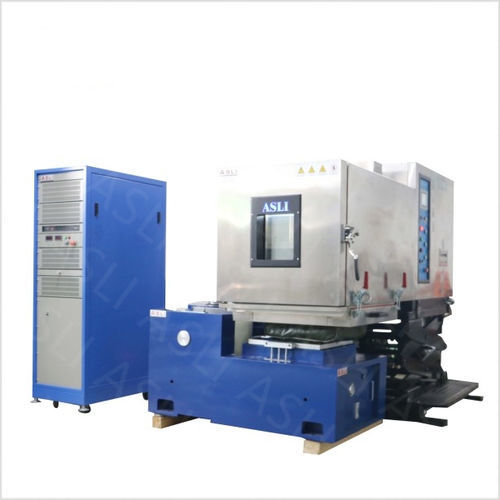

ISO 16750-3 Temperature Humidity Combined Vibration Test System simulates the condition of temperature, humidity, and vibration to test materials or products' properties. It is widely applied to aerospace products, information electronic instruments and meters, materials, electrical and electronic products, and various electronic SAP parts under combined temperature, humidity and vibration environments. When the test piece is tested by the system, the vibration (sinusoidal or random), temperature (high or low), humidity and electric stress are combined and applied according to the specified period to reflect environmental conditions during transportation and use.

Chamber Specification — THV Series
Parameter | THV-408 (A~F) | THV-1000 (A~F) | THV-1500 (A~F)
Internal Dimension W×H×D (mm) | 600 × 850 × 800 | 1000 × 1000 × 1000 | 1500 × 1500 × 1500
External Dimension W×H×D (mm) | 850 × 1950 × 2100 | 1300 × 2200 × 2400 | 1800 × 2400 × 3000
Temperature Range | Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C; High: 100 °C (150 °C / 200 °C optional)
Humidity Range | 20–98% R.H. (10–98% / 5–98% available with dehumidifier)
Control Accuracy | ±0.5 °C; ±2.5% R.H.
Rising / Falling Velocity | Rising: 0.1–3.0 °C/min; Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional)
Protection Devices | Fuse-free switch; compressor overload; high/low coolant voltage; over-humidity and over-temperature; fault warning; water short-storage warning.

Matched Shaker Specification — ES Series
Model | Sine Force (N) | Random Force (N) | Frequency (Hz) | Acceleration (m/s²) | Speed (m/s) | Displacement (p-p) mm | Max. Load (kg) | Coil Mass (kg) | Coil Size (mm)
ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150
ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230
ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230
ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230
ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240
ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320
ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450
ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450
ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450
ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450
ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450

Features

• Integration: Chamber and refrigeration in one unit — compact design with independent console reduces floor space and installation time.
• Coverage: Six temperature grades (A–F) to −75 °C; pick grade to match test standard; optional higher high-temperature range (150 °C / 200 °C).
• Durability: SUS 304 stainless steel interior — corrosion resistant and stable in repeated humidity cycles.
• Flexibility: Matched ES-Series shaker options from 3,000 N to 100,000 N to suit DUT weight and required force.

System Composition

• Test Chamber: Combined temperature and humidity control with SUS 304 interior.
• Refrigeration: Tecumseh (France) and Bizer (Germany) compressor units.
• Humidity Control: Automatic control; optional dehumidifier for low-humidity tests.
• Vibration Bench: Matched ES-Series electrodynamic shaker selected by DUT weight and force.
• Touch Controller: LCD touch screen with RS-232 communication for programmable profiles.

Deliverables & Service

• Installation & Operation Manual: Setup documentation with wiring diagrams and start-up checklist.
• Export Packing List & Shipping Documents: Complete freight documentation including commercial invoice.
• 12-Month Warranty: Covers chamber, refrigeration system, and controller.
• Standard Lead Time: ~20 working days for standard builds; 30–40 working days for customized builds.
• Lifetime Remote Technical Support included.

Standards & Applications
Supported standards include IEC 68-2-1 (Cold), IEC 68-2-2 (Dry Heat), IEC 68-2-3 (Damp Heat — Steady State), IEC 68-2-30 (Damp Heat — Cyclic), IEC 68-2-14 (Change of Temperature), MIL-STD-810G/F (Environmental Test), and ISO 16750-3 (Road Vehicles — Mechanical Loads).
Typical applications: Aviation & Aerospace; Automotive Components; Electronics & PCB Assemblies; Telecommunications; Shipping & Transportation; Research & University Labs; Testing & Certification Bodies; Material R&D Companies.

caractéristiques / spécifications techniques

• Model Series: THV Series (chambers available: THV-408, THV-1000, THV-1500)
• Internal Dimensions (mm): THV-408 = 600 × 850 × 800; THV-1000 = 1000 × 1000 × 1000; THV-1500 = 1500 × 1500 × 1500
• External Dimensions (mm): THV-408 = 850 × 1950 × 2100; THV-1000 = 1300 × 2200 × 2400; THV-1500 = 1800 × 2400 × 3000
• Temperature Range: Low grades A–F from 25 °C down to −70/−75 °C; High: standard 100 °C (150/200 °C optional)
• Humidity Range: 20–98% R.H.; options 10–98% / 5–98% with dehumidifier
• Control Accuracy: ±0.5 °C; ±2.5% R.H.
• Temperature Change Rate: Rising 0.1–3.0 °C/min; Falling 0.1–1.0 °C/min (1.5 °C/min optional)
• Protection: fuse-free switch, compressor overload protection, high/low coolant voltage protection, over-humidity and over-temperature alarms, fault warning, water short-storage warning
• Matched Shaker Range: ES-Series 3,000 N up to 100,000 N; frequency ranges typically 3–2500 / 3–3500 Hz depending on model
• Controller: LCD touch screen, programmable profiles, RS-232 communication
• Interior Material: SUS 304 stainless steel
• Warranty & Support: 12-month warranty; lifetime remote technical support; standard lead time ~20 working days
