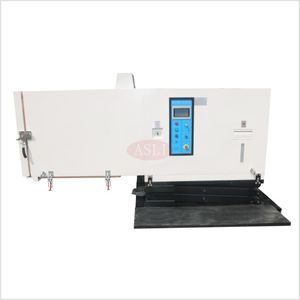

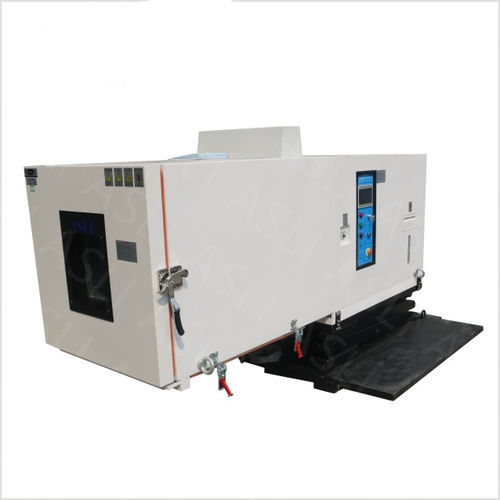

Climate chamber THV series

thermostatichumiditytemperature

Product Overview
Temperature Humidity Vibration Combined Test Chamber integrates a temperature & humidity chamber with a matched electrodynamic shaker to perform combined environmental and vibration tests without moving the DUT. Suitable for electronics, automotive components, aerospace, telecommunications, shipping and research labs. CE certified; 12‑month warranty; standard lead time: 20 working days; lifetime remote technical support included.

Key Features

• Integrated design: chamber and refrigeration in one unit with independent console for reduced footprint and simplified installation.
• Temperature grades A–F, low‑temperature capability down to −75 °C and high‑temperature option up to 100 °C (150 °C / 200 °C optional).
• Interior: SUS 304 stainless steel for corrosion resistance and easy cleaning.
• Matched vibration: ES‑Series electrodynamic shakers available from 3,000 N to 100,000 N to match DUT mass and test force.
• Programmable touch controller with RS‑232 communication for automated profiles.

Chamber Specification — THV Series
Parameter | THV‑408 (A~F) | THV‑1000 (A~F) | THV‑1500 (A~F)
Internal Dimension W×H×D (mm) | 600 × 850 × 800 | 1000 × 1000 × 1000 | 1500 × 1500 × 1500
External Dimension W×H×D (mm) | 850 × 1950 × 2100 | 1300 × 2200 × 2400 | 1800 × 2400 × 3000
Temperature Range | Low: (A) +25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C; High: 100 °C (150 °C / 200 °C optional) | Low: (A) +25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C; High: 100 °C (150 °C / 200 °C optional) | Low: (A) +25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C; High: 100 °C (150 °C / 200 °C optional)
Humidity Range | 20–98% R.H. (10–98% / 5–98% available with dehumidifier) | 20–98% R.H. (10–98% / 5–98% available with dehumidifier) | 20–98% R.H. (10–98% / 5–98% available with dehumidifier)
Control Accuracy | ±0.5 °C; ±2.5% R.H. | ±0.5 °C; ±2.5% R.H. | ±0.5 °C; ±2.5% R.H.
Rising / Falling Velocity | Rising: 0.1–3.0 °C/min; Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional) | Rising: 0.1–3.0 °C/min; Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional) | Rising: 0.1–3.0 °C/min; Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional)
Protection Devices | Fuse‑free switch; compressor overload protection; high/low coolant voltage protection; over‑humidity and over‑temperature protection; fault warning; water short‑storage warning.

Matched Shaker Specification — ES Series
Model | Sine Force (N) | Random Force (N) | Frequency (Hz) | Acceleration (m/s²) | Speed (m/s) | Displacement (p‑p) mm | Max. Load (kg) | Coil Mass (kg) | Coil Size (mm)
ES‑3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150
ES‑3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230
ES‑6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230
ES‑6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230
ES‑10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240
ES‑20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320
ES‑30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450
ES‑40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450
ES‑50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450
ES‑60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450
ES‑100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450

System Composition

• Test Chamber: SUS 304 stainless steel interior with combined temperature and humidity control.
• Refrigeration: Tecumseh (France) and Bitzer (Germany) compressor options for refrigeration performance.
• Humidity Control: automatic control with optional dehumidifier for low‑humidity testing.
• Vibration Bench: ES‑Series electrodynamic shaker selected according to DUT weight and required force.
• Touch Controller: LCD touch screen with RS‑232 communication for programmable test profiles.

Standards

• IEC 68‑2‑1 (Cold)
• IEC 68‑2‑2 (Dry Heat)
• IEC 68‑2‑3 (Damp Heat — Steady State)
• IEC 68‑2‑30 (Damp Heat — Cyclic)
• IEC 68‑2‑14 (Change of Temperature)
• MIL‑STD‑810G / MIL‑STD‑810F (Environmental Test)
• ISO 16750‑3 (Road Vehicles — Mechanical Loads)

Deliverables & Service

• Installation & Operation Manual: setup documentation with wiring diagrams and start‑up checklist.
• Export Packing List & Shipping Documents: complete freight documentation including commercial invoice.
• 12‑Month Warranty covering chamber, refrigeration system and controller.
• Standard Lead Time: 20 working days for standard builds; 30–40 working days for customized builds.
• Lifetime remote technical support included; on‑site commissioning available at additional cost.

Applications

• Aviation & Aerospace
• Automotive Components
• Electronics & PCB Assemblies
• Telecommunications
• Shipping & Transportation
• Research & University Labs
• Testing & Certification Bodies
• Material R&D Companies

Technical Specifications

• Models (THV Series): THV‑408, THV‑1000, THV‑1500.
• Internal dimensions (mm): 600×850×800 / 1000×1000×1000 / 1500×1500×1500.
• Temperature range: Low grades A–F from +25 °C down to −75 °C; High up to 100 °C (150 °C / 200 °C optional).
• Humidity range: Standard 20–98% R.H.; 10–98% or 5–98% available with dehumidifier option.
• Control accuracy: ±0.5 °C; ±2.5% R.H.
• Rising/falling rate: Rising 0.1–3.0 °C/min; Falling 0.1–1.0 °C/min (1.5 °C/min optional).
• Protection: fuse‑free switch, compressor overload protection, high/low coolant voltage protection, over‑humidity/over‑temperature alarm, fault warning, water short‑storage warning.
• Matched shaker range: ES‑Series from 3,000 N to 100,000 N (models ES‑3 through ES‑100).
• Controller: programmable touch screen with RS‑232 for automated profiles.
