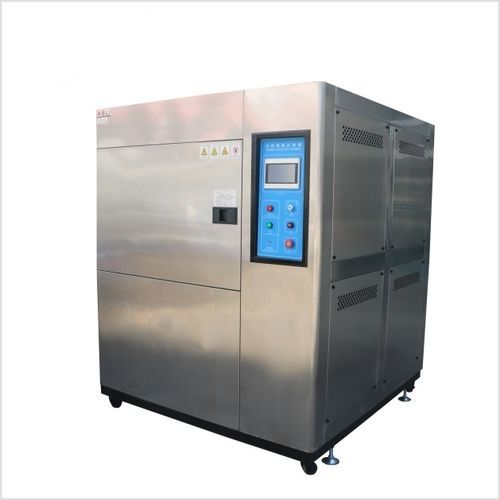

High temperature thermal shock chamber TS series

low-temperaturefor rapid temperature cycling

Product Summary
The TS Series thermal shock environmental aging tester provides separate hot and cold zones and an optional retractable carrier basket to maximize usable volume and accelerate sample throughput. The lightweight basket minimizes thermal inertia. Units are designed for thermal cycling reliability tests across metals, plastics, rubber, electronics and composites.

Series & Certification
TS Series — Thermal Shock Resistance Test Equipment. CE certified. Compliant with EN 60068-2-14. 12-month warranty. Lifetime remote technical support.

TS Series — Five Model Comparison
Parameter | TS-49 (A~C) | TS-80 (A~C) | TS-150 (A~C) | TS-252 (A~C) | TS-450 (A~C)
Internal Dimension W×H×D (mm) | 400 × 350 × 350 | 500 × 400 × 400 | 600 × 500 × 500 | 700 × 600 × 600 | 800 × 750 × 750
External Dimension W×H×D (mm) | 1400 × 1800 × 1400 | 1550 × 1950 × 1550 | 1600 × 2000 × 1700 | 1700 × 2100 × 1750 | 1800 × 2200 × 1900
Temperature Range of Testing Zone | Type A: −40 °C ~ +150 °C (200 °C optional) | Type B: −55 °C ~ +150 °C (200 °C optional) | Type C: −65 °C ~ +150 °C (200 °C optional)
High Temperature Range | +60 °C ~ +150 °C (200 °C optional)
Low Temperature Range | −10 °C ~ −40 °C (A) / −55 °C (B) / −65 °C (C)
Exposure Time — High / Low | High (+60 °C ~ +150 °C): 30 mins | Low (−10 °C ~ A / B / C): 30 mins
Heating Time — Heat-Storing Slot | RT ~ 200 °C / approx. 45 mins
Cooling Time — Cool-Storing Slot | RT ~ −75 °C / approx. 100 mins
Recovery Time / Conversion Time | ≤ 5 min / ≤ 5 sec
Control Accuracy / Uniformity | ±0.5 °C / ±2 °C
Internal and External Material | Inner chamber: SUS 304 stainless steel. Outer: stainless steel or cold-rolled steel with paint coating.
Insulation Material | High-temperature resistant, high-density formate/chlorinated ethyl acetate foam insulation
Mechanics | PID + SSR + microcomputer balanced temperature control with touch-screen interface
Cooling System | Semi-hermetic two-stage compressor (water-cooled) or hermetic two-stage compressor (air-cooled)
Security Protection Devices | Non-fuse breaker; compressor high/low pressure switch; refrigerator high-pressure switch; failure warning system; electronic alarm; over-temperature and water-shortage protections
Accessories | Viewing window (optional)
Compressor Brands | Tecumseh (France) / Bitzer (Germany)
Power | AC 220 V 1-phase 3-wire, 50/60 Hz or AC 380 V 3-phase 5-wire, 50/60 Hz
Weight (Approx.) | TS-49: 450 kg | TS-80: 600 kg | TS-150: 750 kg | TS-252: 950 kg | TS-450: 1200 kg

Overview
Designed to meet EN 60068-2-14, the TS Series evaluates material and assembly resistance to rapid temperature transitions. Tests reveal chemical or mechanical degradation caused by thermal expansion/contraction under accelerated cycling.

Configurations

• Two-Chamber — Basket Transfer (Vertical Stack): Sample basket moves vertically between a high-temperature chamber and a low-temperature chamber. Fast transfer, short recovery, high cycle throughput. Suited to high-frequency cycling and batch screening.
• Single-Chamber — Static Sample (Airflow Switching): Single chamber with rapid hot/cold airflow switching. Sample remains static—no mechanical movement. Recommended for delicate or wired samples. RS-232 / RS-485 available for data logging.

Key Features & Built-in Functions

• Intuitive touch-screen controller with graphical interface.
• Fast conversion (≤ 5 sec) and fast recovery (≤ 5 min).
• Three low-temperature grades down to −65 °C; high-temperature option to +200 °C.
• Programmable cycling: up to 999 hours per step and up to 9999 cycles.
• Automatic and manual operation modes.
• Binary/water-cooled cooling options for accelerated cooling.
• RS-232 / RS-485 standard for data logging and automation.
• Custom inner dimensions available on request.

Standards

• EN 60068-2-14 (Change of Temperature)
• IEC 60068-2-14 (Change of Temperature)
• GB/T 2423.22 (Change of Temperature)
• MIL-STD-810G / MIL-STD-810F (Environmental Test)
• ISO 16750-4 (Road Vehicles — Climatic Loads)
• JESD22-A104 (Temperature Cycling)
• JESD22-A106 (Thermal Shock)

Test Data
Measured temperature profile charts and sample recorded cycles are available to document typical thermal shock sequences and actual unit performance.

Deliverables & Service

• Installation & operation manual with wiring diagrams and start-up checklist.
• Export packing list and shipping documents.
• 12-month warranty covering chamber, refrigeration system and controller.
• Standard lead time: ~20 working days; customized builds: 30–40 working days.
• Lifetime remote technical support included; on-site commissioning available as an option.

Applications
Suitable for thermal shock testing of metals & alloys, plastics & rubber, electronics & PCBs, automotive components, aerospace materials, composite materials, research laboratories and test & certification bodies.

Technical Specifications

• Series: TS Series (models TS-49, TS-80, TS-150, TS-252, TS-450).
• Testing temperature grades: Type A −40 °C; Type B −55 °C; Type C −65 °C (high temp up to +150 °C standard; +200 °C optional).
• Internal dimensions (W×H×D mm): TS-49: 400×350×350; TS-80: 500×400×400; TS-150: 600×500×500; TS-252: 700×600×600; TS-450: 800×750×750.
• External dimensions (W×H×D mm): TS-49: 1400×1800×1400; TS-80: 1550×1950×1550; TS-150: 1600×2000×1700; TS-252: 1700×2100×1750; TS-450: 1800×2200×1900.
• Heating time (RT → 200 °C): approx. 45 mins. Cooling time (RT → −75 °C): approx. 100 mins.
• Exposure time: High / Low: 30 min each (standard profile).
• Recovery / conversion: ≤ 5 min recovery; ≤ 5 sec conversion.
• Control accuracy / uniformity: ±0.5 °C / ±2 °C.
• Inner material: SUS 304 stainless steel; Outer: stainless steel or cold-rolled steel with paint.
• Insulation: High-density, high-temperature resistant foam.
• Control system: PID + SSR + microcomputer; touch-screen interface; programmable cycling.
• Cooling: Semi-hermetic or hermetic two-stage compressors; water- or air-cooled options.
• Security: Non-fuse breaker, compressor pressure switches, failure warnings, electronic alarms, over-temperature and water shortage protection.
• Accessories (optional): viewing window.
• Compressor brands: Tecumseh (France) / Bitzer (Germany).
• Power supply options: AC 220 V 1-phase 3-wire 50/60 Hz or AC 380 V 3-phase 5-wire 50/60 Hz.
• Approx. weight: TS-49: 450 kg; TS-80: 600 kg; TS-150: 750 kg; TS-252: 950 kg; TS-450: 1200 kg.
