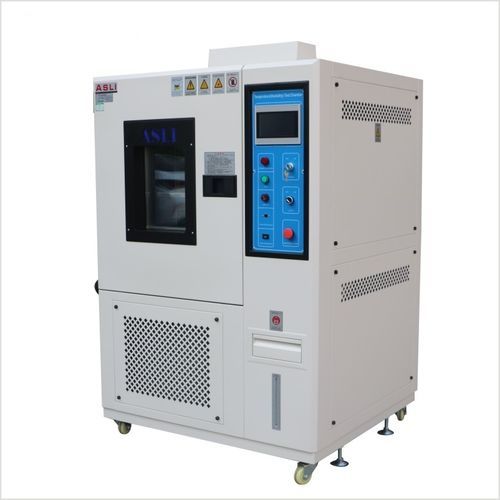

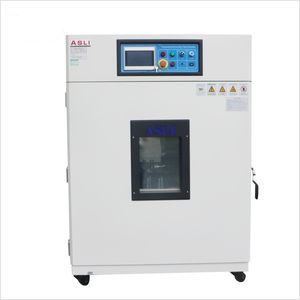

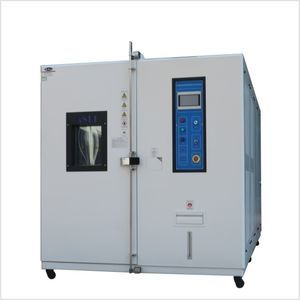

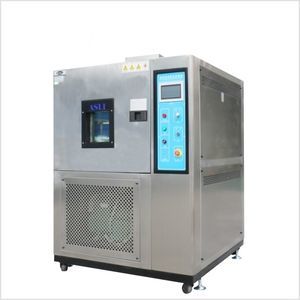

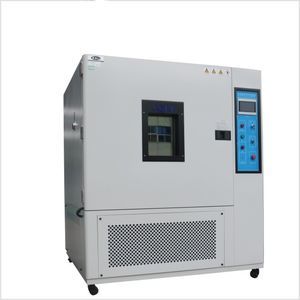

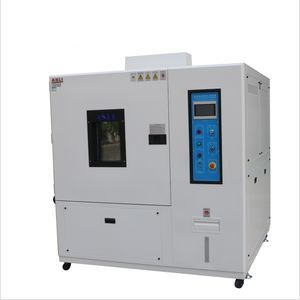

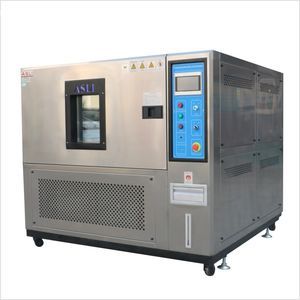

Thermostatic test chamber F-TH series

climatichumiditytemperature

Overview
High stress of 5C/min ~ 15C/min. This faster temperature (and optional humidity) chamber enables the application of high stress to the specimen at a rapid temperature change rate of 5 °C/min or more. Due to the larger refrigeration system, 5 °C/min or more is achieved from -45 °C to +155 °C with the F-TH and F-HL models (with or without specimen loaded). Instrumentation is integrated into the door. The controller unit is a bright color LCD interactive touch-screen system which provides easy controlling of the chamber.

Product family & headline
Fast Temperature Change Rate Test Chamber — F-TH Series (models: F-TH-150 / 225 / 408 / 800). Rapid 3–20 °C/min linear ramp; optional humidity control available.

Models & key specifications (table)
Parameter | F-TH-150 (A~F) | F-TH-225 (A~F) | F-TH-408 (A~F) | F-TH-800 (A~F)
Internal Dimension W×H×D (mm) | 500 × 600 × 500 | 600 × 750 × 500 | 600 × 850 × 800 | 1000 × 1000 × 800
External Dimension W×H×D (mm) | 1100 × 1750 × 1600 | 1200 × 1800 × 1700 | 1250 × 1900 × 1900 | 1600 × 2050 × 2150
Temperature Range | −70 °C ~ +150 °C (all models) | | |
Range of Fast Temperature Change | −45 °C ~ +85 °C (all models) | | |
Maximum Ramp Rate | Up to 20 °C/min under full linear control (all models) | | |
Rising / Falling Velocity | Linear control: 3 ~ 20 °C/min, adjustable | Nonlinear control: 3 ~ 30 °C/min, adjustable
Humidity Range (Optional) | 20% ~ 98% R.H. — 10%–98% or 5%–98% available with dehumidifier
Indication Resolution | 0.1 °C / 0.1% R.H.
Distribution Uniformity | ± 2.0 °C / ± 3.0% R.H.
Control Accuracy | ± 0.5 °C / ± 2.5% R.H.
Internal and External Material | Inner box: SUS 304 stainless steel; Outer box: stainless steel or cold-rolled steel with paint coating
Insulation Material | High-temperature resistant, high-density, formate chlorine / ethyl acetate foam insulation materials
Cooling System | Water-cooled / single-stage compressor; refrigerant R23 / R404A
Compressor | French Tecumseh brand; Germany Bitzer brand
Protection Devices | Fuse-free switch; compressor overload protection; high/low pressure coolant protection; over-humidity and over-temperature protection; fuses; fault warning system; water shortage warning
Optional Accessories | Inner door with operation hole; water purifier; dehumidifier; recorder
Communication | RS-232 or RS-485
Power | AC 380 V 3-phase 5-wire, 50/60 Hz
Weight (Approx.) | 250 kg / 350 kg / 450 kg / 600 kg (models 150 / 225 / 408 / 800 respectively)

Control modes & configuration

• Linear Mode: 3–20 °C/min with full linear control — constant ramp rate from start to finish; adjustable and repeatable for standards-compliant tests.
• Nonlinear Mode: 3–30 °C/min with faster peak ramp — ramp varies across the profile for accelerated stress screening; humidity function can be combined.

Key features

• Up to 20 °C/min linear ramp (practical high-speed linear control).
• Temperature control with optional humidity (20%–98% R.H.; extended ranges with dehumidifier).
• Control accuracy: ±0.5 °C and humidity control ±2.5% R.H.
• Built-in BTHC temperature & humidity control with P.I.D. + S.S.R. and auto-calculate function.
• Programmable multi-segment cycling: up to 100 programs × 100 segments; up to 999 cycles per program.
• Power-off memory with multi-year backup; imported LCD display showing set/actual/time.
• Dual refrigeration loop with imported, fully-closed compressors for fast cooling (air-cooled or water-cooled).
• Standard DIN PT-100Ω sensor for stable long-term temperature measurement.
• Interfaces: RS-232 / RS-485 and timer relay output; interface lock and alarm functions.

Standards supported

• IEC 62133-2017 (Secondary Cells & Batteries)
• UL 1642 (Lithium Batteries)
• UN 38.3 (Transport of Lithium Batteries)
• IEC 60068-2-14 (Change of Temperature)
• GB/T 2423.22 (Change of Temperature)
• IEC 60068-2-38 (Composite Temperature / Humidity)
• MIL-STD-810 (Environmental Test)
• ISO 16750-4 (Road Vehicles — Climatic Loads)

Applications

• Electronics & PCBs
• Electric appliances
• Communication equipment
• Instruments & meters
• Automotive components
• Battery & energy storage testing
• Plastics, rubber, metal & alloys
• Food & chemical materials testing
• Building materials, medical devices, aerospace & defense reliability testing

Caractéristiques / spécifications techniques

• Series: F-TH Series (models F-TH-150, F-TH-225, F-TH-408, F-TH-800)
• Internal volumes: 150 L, 225 L, 408 L, 800 L (approx.)
• Fast temperature change range: −45 °C ~ +85 °C (rapid change operation)
• Maximum ramp: Up to 20 °C/min (linear control); nonlinear up to 30 °C/min peak
• Full temperature range: −70 °C ~ +150 °C
• Optional humidity: 20%–98% R.H. standard; 10%–98% or 5%–98% available with dehumidifier
• Resolution: 0.1 °C / 0.1% R.H.; Control accuracy: ±0.5 °C / ±2.5% R.H.
• Materials: Inner SUS 304 stainless steel; outer stainless or painted cold-rolled steel
• Refrigeration: Water-cooled / single-stage compressor; refrigerants R23 / R404A; imported compressors
• Communication: RS-232 / RS-485; timer relay output
• Power: AC 380 V 3-phase 5-wire, 50/60 Hz
• Approx. weights: 250 kg (150), 350 kg (225), 450 kg (408), 600 kg (800)
