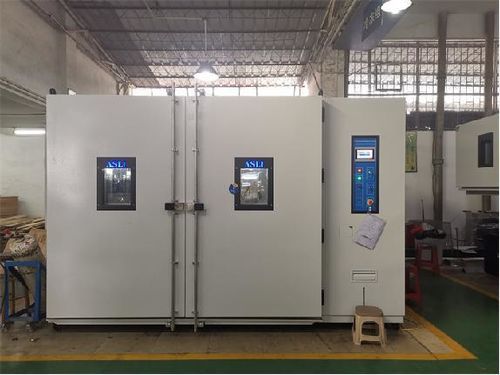

Rapid thermal shock chamber F-TH series

for rapid temperature cyclinglow-temperaturelarge

Overview
Rapid Temperature Change Test Chamber (F-TH series) designed to apply high thermal stress to specimens by fast temperature ramps. Faster change rates (from 5 °C/min and above) are achievable with enhanced refrigeration; dual refrigeration loop enables rapid performance across wide ranges. Instrumentation is integrated in the door and the controller uses a color LCD touch-screen for straightforward operation.

Product headline / key model info
F-TH-150 / F-TH-225 / F-TH-408 / F-TH-800 (options A~F) — Rapid linear ramps 3–20 °C/min (linear), nonlinear peaks to 30 °C/min; optional humidity control 20%–98% R.H. (extended ranges with dehumidifier).

Control Modes

• Linear Mode — 3–20 °C/min with full linear control: adjustable ramp, constant slope, repeatable for qualification and audits.
• Nonlinear Mode — 3–30 °C/min with faster peak ramp: variable ramp rate across profile for accelerated stress screening (HALT-style); humidity function can be combined.

Features & Capabilities

• Ramp speed: up to 20 °C/min linear; nonlinear peak up to 30 °C/min.
• Temperature coverage with optional humidity: standard 20%–98% R.H.; 10%–98% or 5%–98% available with dehumidifier.
• Control accuracy and resolution: ±0.5 °C / ±2.5% R.H.; indication resolution 0.1 °C / 0.1% R.H.
• Four standard internal volumes (150 L, 225 L, 408 L, 800 L) with configurable A~F option levels.
• Integrated functions: BTHC temperature & humidity control (P.I.D. + S.S.R.), programmable multi-segment cycling (100 programs × 100 segments), power-off memory (5-year backup), imported color LCD touch controller, dual refrigeration loop, DIN PT-100Ω sensor, RS-232/RS-485 communication, interface lock and alarms.
• Protection devices: fuse-free switch, compressor overload protection, high/low pressure coolant protection, over-humidity and over-temperature protection, fault warning and water shortage alerts.

Standards Supported

• IEC 62133-2017 (Secondary Cells & Batteries)
• UL 1642 (Lithium Batteries)
• UN 38.3 (Transport of Lithium Batteries)
• IEC 60068-2-14 (Change of Temperature)
• GB/T 2423.22 (Change of Temperature)
• IEC 60068-2-38 (Composite Temperature / Humidity)
• MIL-STD-810 (Environmental Test)
• ISO 16750-4 (Road Vehicles — Climatic Loads)

Specification Table
Parameter | F-TH-150 (A~F) | F-TH-225 (A~F) | F-TH-408 (A~F) | F-TH-800 (A~F)
Internal Dimension W×H×D (mm) | 500 × 600 × 500 | 600 × 750 × 500 | 600 × 850 × 800 | 1000 × 1000 × 800
External Dimension W×H×D (mm) | 1100 × 1750 × 1600 | 1200 × 1800 × 1700 | 1250 × 1900 × 1900 | 1600 × 2050 × 2150
Temperature Range | −70 °C ~ +150 °C (all models)
Range of Fast Temperature Change | −45 °C ~ +85 °C (all models)
Maximum Ramp Rate | Up to 20 °C/min under full linear control (all models)
Rising / Falling Velocity | Linear control: 3 ~ 20 °C/min, adjustable | Nonlinear control: 3 ~ 30 °C/min, adjustable
Humidity Range (Optional) | 20% ~ 98% R.H.; 10%–98% or 5%–98% with dehumidifier
Indication Resolution | 0.1 °C / 0.1% R.H.
Distribution Uniformity | ±2.0 °C / ±3.0% R.H.
Control Accuracy | ±0.5 °C / ±2.5% R.H.
Internal and External Material | Inner box: SUS 304 stainless steel; Outer box: stainless steel or cold-rolled steel with paint coating
Insulation Material | High-temperature resistant, high-density foam (formate / chlorine / ethyl acetate based)
Cooling System | Water-cooled / single-stage compressor; refrigerant R23 / R404A
Compressor | Imported brands (e.g., Tecumseh, Bizer depending on configuration)
Protection Devices | Fuse-free switch; compressor overload protection; high/low pressure coolant protection; over-humidity and over-temperature protection; fault warning system; water shortage warning
Optional Accessories | Inner door with operation hole; water purifier; dehumidifier; recorder
Communication | RS-232 or RS-485
Power | AC 380 V 3-phase 5-wire, 50/60 Hz
Weight (Approx.) | 250 kg | 350 kg | 450 kg | 600 kg

Applications
Used for quality inspection and reliability testing across electronics, automotive, battery & energy storage, instrumentation, plastics & rubber, metals & alloys, food & chemical, building materials, medical devices, aerospace & defense industries.

Technical specifications

• Series: F-TH Series (F-TH-150 / 225 / 408 / 800; option levels A~F)
• Internal volumes: 150 L, 225 L, 408 L, 800 L
• Temperature range: −70 °C to +150 °C
• Fast change range: −45 °C to +85 °C
• Maximum ramp: up to 20 °C/min (linear); nonlinear peak up to 30 °C/min
• Humidity (optional): 20%–98% R.H.; extended 10%–98% or 5%–98% with dehumidifier
• Resolution: 0.1 °C / 0.1% R.H.; Control accuracy ±0.5 °C / ±2.5% R.H.
• Uniformity: ±2.0 °C / ±3.0% R.H.
• Construction: Inner box SUS 304 stainless steel; outer box stainless steel or cold-rolled steel with paint
• Cooling: Water-cooled / single-stage compressor; refrigerants R23 / R404A
• Compressors: Tecumseh / Bizer (depending on configuration)
• Protections: compressor overload, high/low pressure, over-temp/humidity, fault warnings, water shortage alert
• Communication & control: RS-232 / RS-485; color LCD touch-screen; programmable multi-segment cycling (100 programs × 100 segments)
• Power: AC 380 V 3-phase 5-wire, 50/60 Hz
• Approx. weight by model: 250 / 350 / 450 / 600 kg (F-TH-150 / 225 / 408 / 800)
