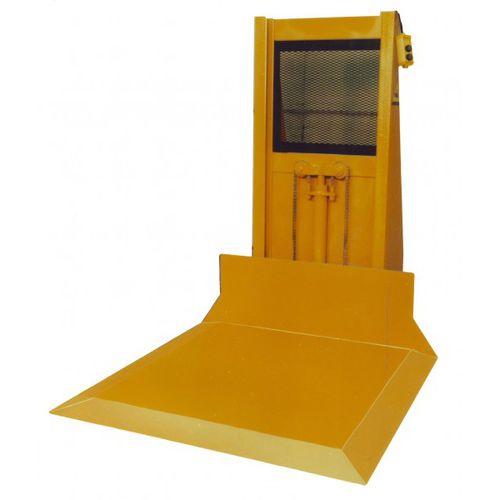

Column type lift table ZL3P series
electricmanualstationary

column type lift table
column type lift table
column type lift table
Add to favorites
Compare this product


Characteristics

Technology
column type
Operation
electric, manual
Type
stationary
Other characteristics
roller
Capacity

2,500 lb (1,134 kg)

Lifting height

Min.: 0 in

Max.: 48 in

Description

3-Way Easy Access! Easiest to use lift table of all time! ATI’s 3-Point Entry, Zero-Low Lift Table permits the load to be placed on the table from three sides and raised close to the operator. 1,000 & 2,500 lb. capacities, up to 48 in. lift height Loads can be placed on table from three sides providing easier access by operator Wide variety of deck sizes available to fit any size load Decks available in 30×30, 36×36, 42×42, and 48×48 inch sizes. Double roller lifting chains give maximum lifting stability Lifting table travels on rollers eliminating rubbing, friction and binding. Rollers are adjustable; level lifting is maintained at all times. Manual or electric operation Power options are manual hydraulic hand pump, electric 110 volt or 220/440 volt a.c., 3 phase; with a choice of 110 volt push-button or foot-pedal control.
