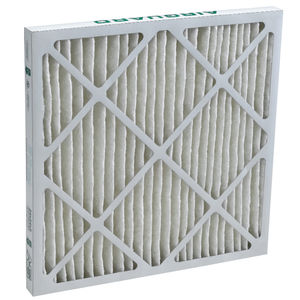

Air filter PowerGuard™

paneldusthydrophobic

MERV 11 Super charged, electrostatically enhanced media 1”, 2” and 4” depths available Die cut beverage board frame Introduction •Airguard’s PowerGuard filters are medium-efficiency, extended surface, pleated air filters. •Specifically manufactured for system applications requiring improved medium-ef­fi­ciency, non-shedding filtration media. •Outperforms similar products with respect to initial ef­fi­ciency, and average ef­fi­ciency providing optimum filter service life. •Effective in single filter applications or as improved pre-filter substitutes for disposables, permanent metal filters or media pad/frame filters. •Industry applications: Pre-filtration for hospitals, general health care facilities, food processing plants, telecommunications, pharmaceutical and semi-conductor manufacturing, etc. •MERV 11 (Minimum Efficiency Reporting Value) based on ASHRAE Test Standard 52.2-2012. Media and Support •Synthetic media made up of continuous hydrophobic fibers which do not absorb moisture and can withstand turbulent, high velocity conditions. •Fibers are needed to eliminate the need for chemical binders that could promote microbial growth or generate VOCs. •Improved overall particle size efficiency due to continuous fiber structure and dual-stage electrostatic enhancement which captures an increased amount of smaller particulate than conventional glass media. •Media support: Continuously bonded to a corrosion resistant, expanded metal grid allowing a 96% open face area. •Pleat configuration: Formed into aerodynamic, semitapered, wedge-shaped pleats expanding its capability to capture contaminants.
