Monitoring weather station 110WX WEATHERSTATION® INSTRUMENT

monitoring weather station
monitoring weather station
monitoring weather station
monitoring weather station
Add to favorites
Compare this product


Characteristics

Options
monitoring

Description

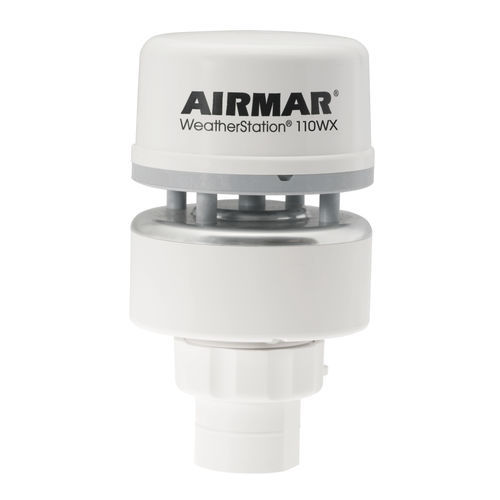

The model 110WX is Airmar’s solution for land-based, stationary, weather-monitoring applications. The 110WX gives wind, air temperature, and barometric pressure readings. Feature rich and encased in a durable, rugged housing that is IPX6 rated, the 110WX is the right component for effective agriculture and livestock management. Reliability and performance, along with no moving parts, makes the 110WX a trouble-free and affordable choice. Features: - Ultrasonic measurement of apparent wind speed and direction - Barometric pressure - Air temperature - Wind chill - Housing IPX6 rated for water-ingress protection - Data output via a single cable (various lengths available) - NMEA 0183/ASCII serial data protocol over RS-232 interface - NMEA 2000 protocol over CAN Options: - Relative humidity module - Enables dew-point and heat-index calculations - Field serviceable - WeatherStation housing rated IPX4 Specifications: Weight: 275 g (0.6 lb.) Wind Speed: - Range: 0 to 40 m/s (0 to 89 MPH) - Accuracy: 5% at 10 m/s at 4 angles - Resolution: 0.1 m/s - Calculations: User configurable damping Wind Direction: - Range: 0 to 359.9° - Accuracy: ±3° at 10 m/s - Resolution: 0.1° - Calculations: User configurable damping Air Temperature: - Range: -40 to 80°C (-40 to 176°F) - Accuracy: ±1.1°C at 20°C - Resolution: 0.1°C Barometric Pressure: - Range: 300 to 1100 hPa - Accuracy: ±0.5 hPa at 25°C (or better) - Resolution: 0.1 hPa Optional Relative Humidity: - Range: 0 to 100% RH - Accuracy: ±5% RH at 0 to 90% RH at 20°C - Resolution: 0.1% RH Operating Temperature Range: -25 to 55°C (-13 to 131°F) Power: - Supply Voltage: 9 to 40 VDC - Supply Current: <55 mA (<0.7 W) at 12 VDC

VIDEO
