Automatic control system Depur Spray-Box SPB190277-V2x

monitoringindustrial

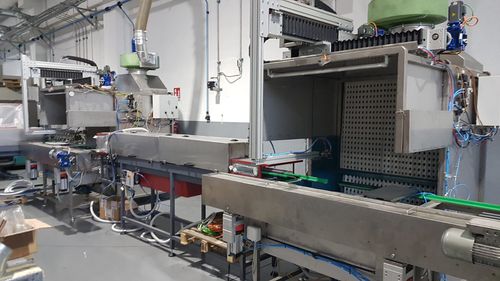

Airmation plant with two Spray Box booths in line and treatment by drying oven (step 1+2).I Automated painting system with integrated collection booth for the treatment of the distribution over-spray. Essentially composed of: – in-line feed system with motorized module for insertion, positioning and unloading of pieces to be treated – internal rotary table with the possibility of continuous rotation or pre-set treatment positions (step 90°) – upper movement module (interpolation XY axes) with strengthened components and protection by bellows – selection of treatment speed (mm/linear m) – electro-pneumatic control unit for atomization on-off phases control – stainless steel suction booth with treatment by multi-stage filtration – continuous monitoring of pressure and flow values ​​for perfect process reproducibility with recipe value retention – dedicated software with simplified control interface Details to be treated: trays/jigs for pieces 450 x 450 mm (versions for different processes available)
