Diesel engine high-pressure cleaner HPE-250-120-Sx-Cx

skid-mountedindustrialhigh pressure

Product
HPE-250-120-Sx-Cx

Overview

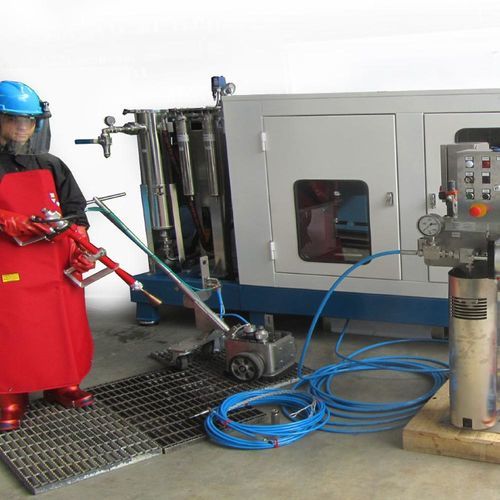

Ultra high pressure delivery unit for surface preparation applications. Diesel Series, maximum working pressure 2500 bar. Skid-mounted complete unit designed for industrial surface cleaning and preparation.

GENERAL FEATURES

• Complete skid for supporting devices
• Booster pump for water precharge
• Water tank with minimum level sensor
• Water temperature sensor
• Water inlet pressure sensor
• Triple stage water filtration (300-10-5 μm)
• Electro-pneumatic control panel with emergency button
• Maximum pressure safety with calibrated rupture disc
• Pressure gauge (scale up to 4000 bar)
• Ultra high pressure by-pass with remote pneumatic control
• Full technical noise-insulating casing

OPTIONAL

• Manual gun for cleaning operations – flexible hose to gun
• Electric cabinet with integrated inverter (pressure selection)
• Trolley for automatic cleaning operation of ground surface
• External complete soundproofed casing
• Electrical cabinet dedicated to specific plants

Technical specifications

• Model: HPE-250-120-Sx-Cx
• Series: Diesel Series
• Maximum working pressure (stated): 2500 bar
• Application: Surface preparation / Ultra high pressure delivery
• Construction: Complete skid-mounted unit
• Water handling: Booster pump for precharge; water tank with minimum level sensor; water temperature sensor; water inlet pressure sensor
• Filtration: Triple stage water filtration 300 - 10 - 5 μm
• Controls & safety: Electro-pneumatic control panel with emergency button; max pressure safety with calibrated rupture disc; ultra high pressure by-pass with remote pneumatic control; pressure gauge up to 4000 bar
• Acoustic: Full technical noise-insulating casing
• Available options: manual cleaning gun and hose; integrated inverter electric cabinet; automatic ground-surface cleaning trolley; external soundproofing; dedicated electrical cabinets for specific plants
