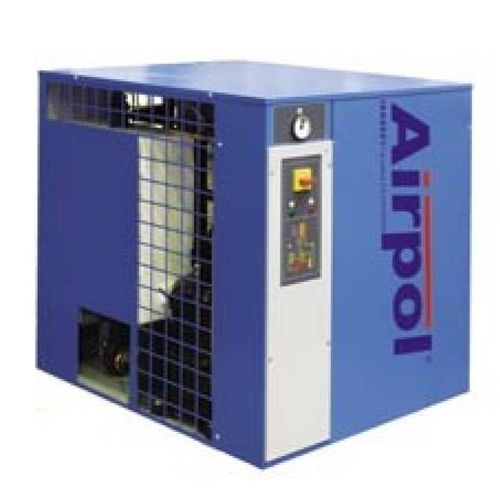

Refrigerated compressed air dryer OP 10
compact

refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product

Characteristics

Technology
refrigerated
Other characteristics
compact
Capacity

51 m³/h (1,801.05 ft³/h)

Description

Refrigerant dryer Air flow [m³/h] 50 Air flow [m³/min] 0.83 Dryer pressure dew point [°C] +3 Min working pressure [MPa] 0.5 Max working pressure [MPa] 1.6 Max compressed air temperature on the outlet [°C] +55 Ambient temperature [°C] +5 ÷ +45 Dimension (LxWxH) [mm] 372 x 404 x 380 Compressed air connection G 1/2 Weight [kg] 25 Sound level L [dB(A 50 Nominal power [kW] 0.26 Feed voltage [V] 230V/50Hz/1ph Recommended power feed cable [mm2 ] 3x1,5 Protection fuse [A] 6 Refrigerant type R134a
