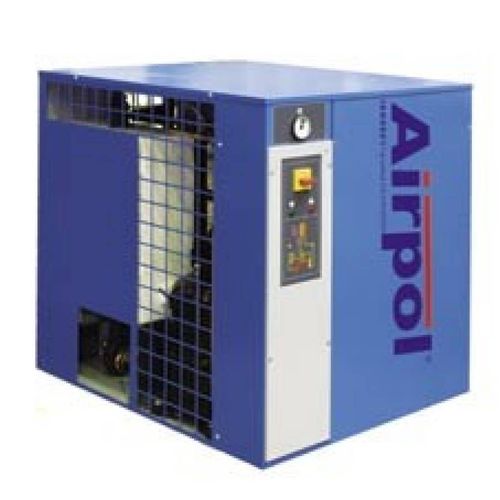

Refrigerated compressed air dryer OP 30compact
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- compact
- Capacity
110 m³/h
(3,884.61 ft³/h)
Description
Refrigerant dryer
Air flow [m³/h] 110
Air flow [m³/min] 1.82
Dryer pressure dew point [°C] +3
Min working pressure [MPa] 0.5
Max working pressure [MPa] 1.6
Max compressed air temperature on the outlet [°C] +55
Ambient temperature [°C] +5 ÷ +45
Dimension (LxWxH) [mm] 372 x 424 x 446
Compressed air connection G 1/2
Weight [kg] 34
Sound level L [dB(A 53
Nominal power [kW] 0.32
Feed voltage [V] 230V/50Hz/1ph
Recommended power feed cable [mm2 ] 3x1,5
Protection fuse [A] 6
Refrigerant type R134a
