Cold air curtain Maxwell

horizontalverticalindustrial door

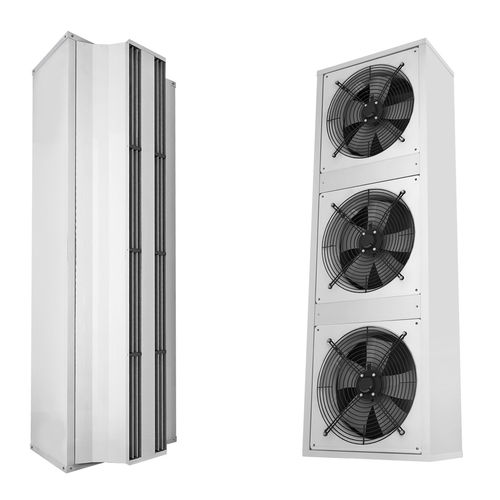

High performance industrial air curtain for vertical or horizontal installations for large industrial doors. Available in 1.5, 2.0, 2.5, 3.0 and 3.5 meters length. Easy dockable modules to reach large dimensions. Heavy self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours are available on request. Double outlet with Coanda effect to achieve larger and efficient air jet. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. High efficiency and low noise axial fans, driven with external rotor motor single phase 230V. Optionally three phase 400V. Maintenance free. “P” type with water heated coil. “A” type without heating, air only. Regulation not included. Optional: Basic regulation with Plug&play control panel, 10m RJ45cable and remote control. Advanced regulation with Clever (automatic, intelligent, energy saving, Modbus RTU for BMS, …)
