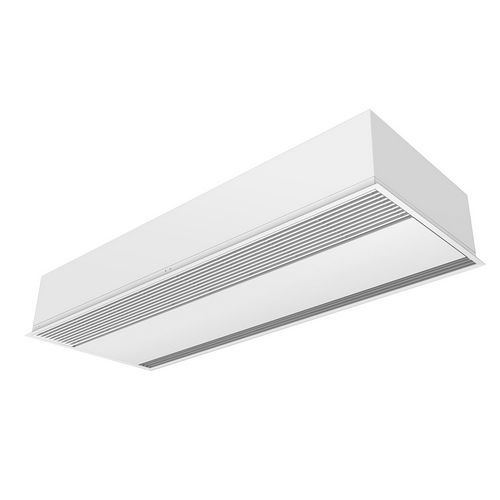

Ambient air curtain RECM 2000 DX16-TO

ceiling-mounted

Energy saving heat pump air curtain: Up to 70% reduction in costs and CO2 emissions (heating mode). Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling. Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request. Internal prefilter included. Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. Includes only heating direct expansion coil with installed temperature sensors. Under request it can be modified to work in cooling and heating mode (not recomended) with optional condensate water pump. Plug&Play control panel CS-5DX-NE slave DX with 5 speeds selector and 7m telephone cable included. DX 1:1: Ready to connect to TOSHIBA Inverter outdoor heat pump unit (R410A/R32) with expansion valve, not included, the customer should purchase it. Requires TOSHIBA DX Interface KIT adapted for air curtain and programmable control, please consult. DX VRF: Ready to connect to TOSHIBA VRF outdoor heat pump unit (R410A), not included, the customer should purchase it. Requires TOSHIBA VRF Interface KIT adapted for air curtain, programmable control and expansion valve, please consult.
