Vacuum regulator without display V-800 series

precisionminiature

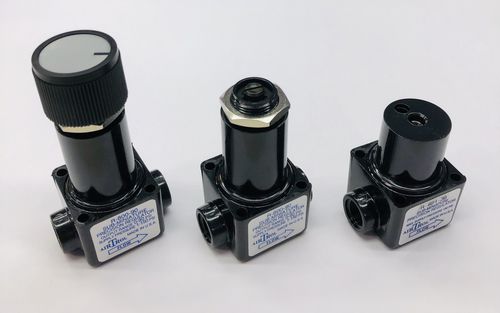

U.S. Patent No. 5,358,004 The V-800 Series vacuum regulators are designed for applications requiring high precision in a miniature package. Hysteresis free adjustments are made through a non-rising stem. Available with an attractive knob, or plain, allowing installation of OEM knobs. Also available is a flush adjusting shaft, and factory pre-set tamper-resistant models. Units may be base mounted or panel mounted. APPLICATIONS: • - Medical Equipment • - Pick ‘n Place • - Laboratory Instruments • - Process Control SPECIFICATIONS REGULATOR TYPE - Constant Bleed, Relieving WETTED MATERIALS - Polysulfone, Buna-N, EPDM, Acetal, Polyurethane, Stainless steel SUPPLY CONSUMPTION - < 16 SCIM (260 cc/min) @ 30" (760 mm) Hg supply MAX SUPPLY - 30″ [760 mm] Hg TEMPERATURE RANGE - 40° – 150° F (4° – 66° C) EFFECT OF SUPPLY VARIATION - < 0.03" (.76 mm) per 5" (127 mm) Hg supply change when dead-ended REPEATABILITY - < +/- 0.05" (1.25 mm) Hg when supply is removed and re-applied SENSITIVITY - 1″ (25.4 mm) H20 MAXIMUM FLOW - 1.0 cu.ft./min. (28 LPM) RECOMMENDED FILTRATION - 5 micron
