Diaphragm pressure regulator SDU-7000single-stageplasticfor medical applications
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- plastic
- Applications
- industrial, precision, for medical applications, for pneumatic applications, low-pressure
- Other characteristics
- compact, high-precision, miniature
- Pressure
Max.: 150 psi
Min.: 0.5 psi
- Orifice diameter
Max.: 0.035 in
Min.: 0.025 in
- Temperature
Max.: 150 °F
(65.6 °C)Min.: 40 °F
(4.4 °C)
Description

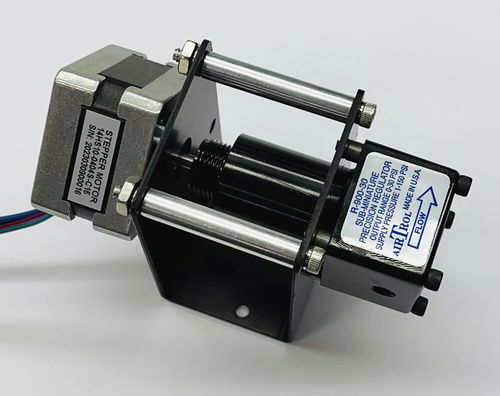

The SDU-7000 Series offers an economical and practical method of controlling pressure or vacuum electronically.
A stepper motor is interfaced with a modified 800 or 900 Series subminiature regulator. The 4104 and RV/S's can also be configured in this manner.
Applications:
This device can be used for applications
where electronic control of a pneumatic
system is desired.
Features:
Compact size and mountable at any angle.
Low power consumption to adjust the output.
No power needed to maintain the output setting.
