Camera inspection system REV 360 Cables

AImulti-cameraautomated

Product overview

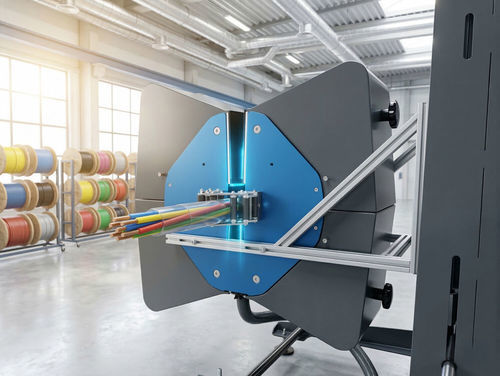

AIS REV 360 Cables is an advanced inline system for cable and tube inspection designed for continuous production lines. It uses Deep Learning to perform automated quality control without stopping or reorienting the product, providing full 360° surface inspection to detect defects across the entire circumference of cylindrical products.

Compatibility

• Coated or uncoated cables
• Extruded plastic tubes
• Metal tubes and other rotational surfaces

How it works
The system combines multiple high-resolution color cameras with uniform contour lighting to analyze the product surface in real time, enabling continuous inspection at production speed.

Key features

• Deep Learning-powered detection for surface defects
• Uniform lighting around the product contour
• High-resolution color cameras (from 5 Mpx)
• High-speed image capture (up to 225 m/min)
• 4 lateral cameras for complete 360° inspection

Real-time quality control
Ensures 100% inline inspection, identifying surface imperfections without interrupting workflow. Production data is logged for analysis and traceability. Format configuration is fast and user-friendly.

Technical specifications

• Inspection type: Continuous 360° surface inspection for cylindrical products
• Processing: Deep Learning-based defect detection
• Cameras: 4 high-resolution color cameras
• Camera resolution: from 5 Mpx
• Capture speed: up to 225 m/min
• Lighting: Uniform contour lighting for consistent imaging
• Compatible materials: Coated/uncoated cables, extruded plastic tubes, metal tubes and other rotational surfaces
• Operation: 100% in-line inspection with production data logging and traceability
• Format configuration: Fast and user-friendly
