Optical imaging analysis system TroublePad

2D

Product overview

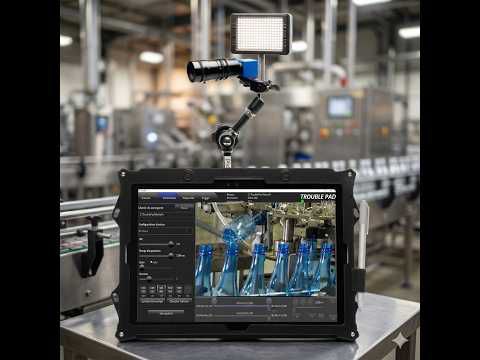

TroublePad is an ultra-portable high-speed camera system designed to capture, diagnose and understand fleeting or random events on production lines and high-speed industrial machinery. The autonomous system integrates a high-speed camera, integrated illumination and analysis software on a touch tablet, enabling immediate on-site investigation and fast start-up within minutes.

Key capabilities

• Immediate installation and fast start-up
• Autonomous system with integrated lighting
• Ultra-portable format in a transport case
• Easy operation and intuitive interface (touch tablet with software)
• Ideal for industrial maintenance and process analysis

Main advantages

• Review sequences in slow motion to identify the source of anomalies
• Keep only key process moments for efficient analysis
• Fast selection and review of key moments
• Reduced time spent reviewing unnecessary sequences

Recording and event capture

• Continuous process monitoring (loop recording)
• Storage of key moments and event clips
• Recording and analysis within minutes after setup
• Ability to retain seconds before and after detected events (pre/post frames)

Ease of use and analysis

• Fast selection and review of captured events
• AVI video export for downstream analysis
• Key image marking and annotation during review
• Simplified interface exposing essential functions for quick access

Sensor-based control (optional)
Optionally, TroublePad can be controlled using signals from the installation’s sensors to start/stop recordings, mark key images and retain pre/post event frames for correlation with machine events.

Downloads
TroublePad data sheet is available as a PDF for further technical and configuration details.

Technical specifications

• Product name: TroublePad
• Type: Ultra-portable high-speed camera system
• Includes: high-speed camera, integrated illumination, touch tablet with analysis software
• Form factor: Transport case for portability
• Operation: Autonomous, immediate installation and fast start-up
• Recording modes: Loop recording with storage of key moments and event clips
• Triggering: Manual via tablet and optional sensor-based triggers (pre/post capture)
• Analysis: Slow motion review, key image marking, AVI export
• Use cases: Process analysis, industrial maintenance, capture of fleeting/random events on production lines
• Resolutions and speeds: 1280x1024 @225 fps; 800x600 @570 fps; 640x480 @850 fps; 500x300 @1500 fps; 320x240 @2500 fps
• Tablet: 12" touch tablet integrated
• Processor: Intel Core class configuration with 8 GB RAM
• Storage: SSD 256 GB (options 512 GB and 1 TB)
• Illumination: Orientable block of 204 LEDs
• Optics: Zoom Macro 8–48 mm; optional wide-angle varifocal 4.0–12.0 mm
• Mounting: Variable friction arm, magnetic base, tripod and fixation accessories
• Connectivity and trigger accessories: Trigger device ±24V, USB3 hub, long hybrid cable, optional wireless trigger
• Format: Autonomous system in transport case for rapid deployment
