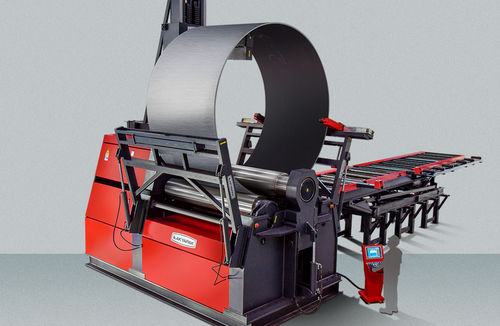

4-roll plate bending machine AHS 30/60

hydraulicCNC

Prescide, Productive and Reliable As well as being reliable, AHS increases productivity with its high speed rolling ability and it overcomes the most challenging bends thanks to its ease of use. Since the plate is pinched during rolling, skidding and slipping of materials are prevented. Thus, more reliable rolling operations are performed and more precise results are achieved. In AHS 4-Roll Plate Rolling Machines, one of the side rolls can be used as a squaring roll, thus the plate can be easily and precisely aligned along the roll across the input direction. Less Flat Ends At a Single Pass It is possible to achieve a full cylinder at a single pass with AHS 4-Roll Machines, because the material can be pinched with the lower-roll during pre-bending and bending. AHS model allows for precise pinching of the plate between upper and lower rolls, thus the length of flat ends are minimized. Akyapak 4-Roll CNC Rolling Machines having superior features decrease the dependency on an operator and offer more reliable and more productive solutions. STANDART FEATURES Cone rolling device Induction hardened rolls Digital readout for side rolls Fully welded steel (St-52) frame Separate moveable control panel Dual bending speeds All rolls are mounted in spherical roller bearings Hydraulically opened/closed drop end controlled from control panel Activation of cone rolling function and position adjustment via buttons on the control panel Top and bottom rolls (central rolls) driven by hydraulic motors and planetary gear reducers Electro – hydraulic calibration CE, ISO9001 – 2015, TSEK ve TURQUM certifications OPTIONAL FEATURES Variable speed of rotation Material feeding table
