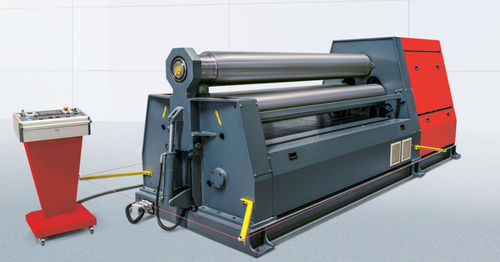

3-roll plate roll machine AHK

hydraulic

In AHK 3-Roll Plate Rolling Machines, all 3 rolls are independently-driven by hydraulic motor and reducer in the models with a top roll diameter of 230 mm and larger, and in the models with a roll diameter of smaller than 230 mm, the side rolls are driven by hydraulic motor, reducer + gear and the top roll is driven by means of chain gear. AHK meets your needs in a wide range from 2 mm to 200 mm in plate thickness and 500 mm to 12000 mm in width Akyapak AHK 3-roll plate rolls allow pre-bending on both sides of the machine without removing the plate out of the machine. It guarantees excellent feeding by preventing the risk of sliding thanks to the braking system it provides. STANDART FEATURES Cone rolling device Induction hardened rolls Digital readout for side rolls Fully welded steel (St-52) frame Separate moveable control panel Dual bending speeds All rolls are mounted in spherical roller bearings Hydraulically opened/closed drop end controlled from control panel Activation of cone rolling function and position adjustment via buttons on the control panel CE, ISO9001 – 2015, TSEK ve TURQUM certifications OPTIONAL FEATURES Variable speed of rotation Material feeding table Oil air cooler Central support Side supports Material ejector Interchangeable top roll
