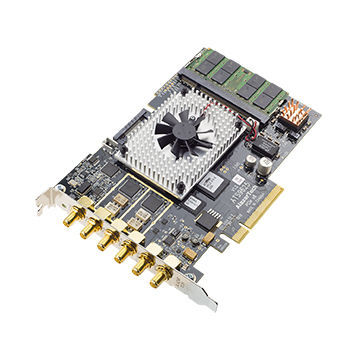

Up to 500 MS/s digitizer ATS9625

2-channel16-bitPCIe

ATS9625 is a 250 MS/s 16-bit PCI Express waveform digitizer. With fixed ac-coupled input range of 2.5 Vp-p and signal to noise ratio in excess of 75 dB, ATS9625 is an ideal solution for radio applications. Features: 250 MS/s 16-bit A/D Sampling per channel AC-coupled input amplifier 1.6 GB/s throughput across PCIe Gen1 x8 bus 2 Channels sampled at 16 bit resolution External clock from 250 MHz to 50 MHz 1 ~ 150 MHz full power bandwidth 2.5 V p-p fixed ac-coupled input range 75.02 dB Signal to Noise Ratio NIST Traceable Calibration Continuous Streaming Mode 2 Gigasamples of on-board Dual-Port Memory Trigger Input & Auxiliary I/O connectors Half-Length PCIe x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
