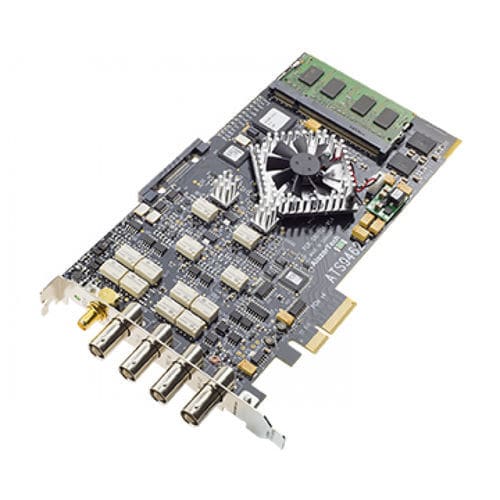

Up to 500 MS/s digitizer ATS9462

2-channelRFPCIe

ATS9462 was the world's first waveform digitizer with a 4-lane PCI Express interface. Boasting data throughput as fast as 720 MB/s and sample rate of 180 MS/s across 2 simultaneous inputs, ATS9462 is an ideal solution for many applications, including OCT, RF signal capture, ultrasonic inspection, and radar. Features: 180 MS/s Real Time Sampling per channel Up to 512 Megasamples of on-board acquisition memory 720 MB/s data throughput to PC memory 2 Channels sampled at 16 bit resolution 65 MHz full power bandwidth ±200 mV to ±16 V Input Range 73.9 dB Signal to Noise Ratio NIST Traceable Calibration Continuous Streaming Mode Trigger Input & Trigger Output connectors ¾-Length PCIe x4 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
