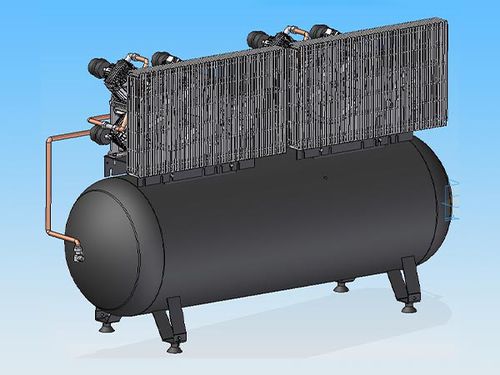

Piston compressor TANK 200 C8airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Voltage
- 400 V
- Other characteristics
- tank-mounted, direct-drive
- Tank volume
200 l
(52.8 gal)- Pressure
9 bar
(130.53 psi)- Flow
720 l/min, 840 l/min
(190.2 us gal/min, 221.9 us gal/min)- Power
2.2 kW
(2.99 hp)- Length
1,434 mm
(56.46 in)- Width
620 mm
(24.41 in)- Height
1,212 mm
(47.72 in)- Weight
174 kg
(383.6 lb)- Noise level
83 dB, 85 dB
Description
Giano series four-cylinder units on tank. This model of air compressor, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life for with a special grease for use with high temperatures.
