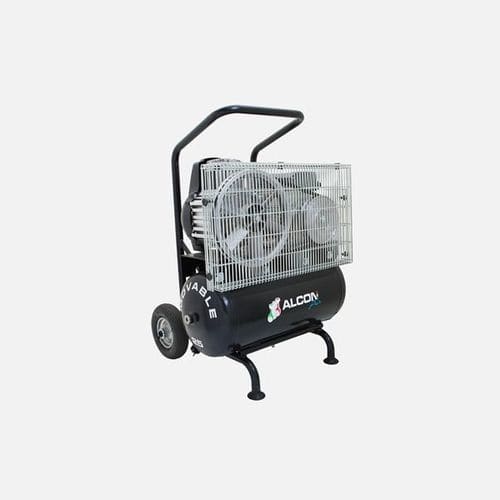

Piston compressor MOVABLE 25Cairelectricon casters
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- on casters
- Lubrication
- oil-free
- Voltage
- 380 V
- Other characteristics
- tank-mounted, belt-driven
- Tank volume
25 l
(6.6 gal)- Pressure
9 bar
(130.53 psi)- Flow
90 l/min, 105 l/min, 180 l/min
(23.78 us gal/min, 27.74 us gal/min, 47.55 us gal/min)- Power
0.8 kW, 1.5 kW
(1.09 hp, 2.04 hp)- Length
560 mm
(22.05 in)- Width
480 mm
(18.9 in)- Height
840 mm
(33.07 in)- Weight
42 kg, 43 kg
(92.6 lb, 94.8 lb)- Noise level
72 dB, 73 dB, 74 dB
Description
This oil-less compressor, which is working without the need of lubrication by oil and belonging to the “Rocking Piston” typology, is composed of a floating piston inside a cylinder (made of extruded treated with hard oxidation) and fixed to a connecting rod, placed on a ball bearing lifetime lubricated with special grease suitable for use at high temperatures.
