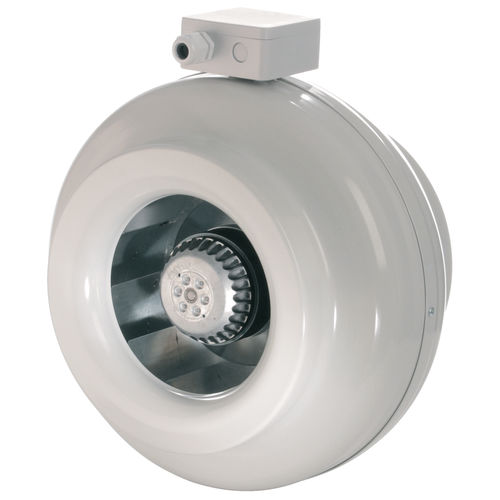

Ceiling-mounted fan VCductcentrifugalventilation
Add to favorites
Compare this product
Characteristics
- Type
- duct, ceiling-mounted
- Configuration
- centrifugal
- Function
- ventilation
- Supply voltage
- 230VAC
- Material
- galvanised steel
- Applications
- industrial, for outdoor use, motor
- Other characteristics
- in-line, with external rotor
- Air flow
Max.: 2,360 m³/h
(83,342.613 ft³/h)Min.: 250 m³/h
(8,828.667 ft³/h)- Diameter
288 mm, 379 mm, 453 mm
(11.339 in, 14.921 in, 17.835 in)- Noise level
56 dB, 57 dB, 58 dB
Description
VC – Duct fan units
Small dimensions.
Maximum simplification of ductwork due to linear air discharge.
Installed inside ducts.
Closed synchronous motor with external rotor – single-phase 230 V / 50 Hz – Class E thermal insulation.
IP44 protection – Terminal box IP 55.
Built-in temperature probe / Sealed bearing, lubricated for whole service life / Permanent condenser.
Can operate on horizontal or vertical axis.
Galvanised steel plate body.
Centrifugal impeller with backward-curve fan blades, fixed to rotor with dynamic balancing.
Possibility of speed control via variation of power voltage (min. voltage for restart: 60 V).
Operating temperature limit: 40 °C.
