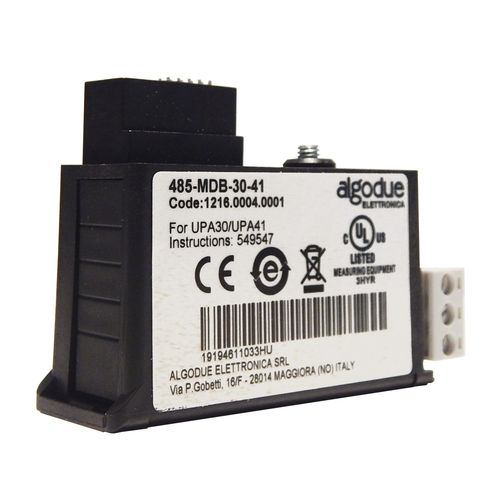

RS485 communication module 485-MDB-30-41, 2PULSE-30-41, 2DO-2DI-30-41, 2AO-30-41

Modbus

Optional plug-in modules for communication, inputs/outputs for Algodue UPA30/UPA41 Network Analyzer Available plug-in modules: - 485-MDB-30-41 RS485 communication with MODBUS protocol (speed up to 38400 baud) - 2PULSE-30-41 2 configurable pulse outputs (type, weight and run) on ±kwh, ±kvarh and kVAh - 2DO-2DI-30-41 2 digital inputs for pulse counting and 2 digital outputs which can be allocated to: • monitoring: IL1, IL2, IL3, IN, VL1-N, VL2-N, VL3-N, VL1-L2, VL2-L3, VL3-L1, f, ±PΣ, ±QΣ, SΣ, PFΣ, THDAL1, THDAL2, THDAL3, THDAN, THDVL1, THDVL2, THDVL3, THDVL1-L2, THDVL2-L3, THDVL3-L1, PPRED, QPRED, SPRED, T°C internal, T°C1 external, T°C2 external, T°C3 external, time counter • remote control • timed remote control - 2AO-30-41 2 analog outputs which can be allocated to: • IL1, IL2, IL3, IN, VL1-N, VL2-N, VL3-N, VL1-L2, VL2-L3, VL3-L1, f, ±PΣ, ±QΣ, SΣ, PFΣ, IΣ, VΣ, PPRED, QPRED, SPRED, T°C internal, T°C1 external, T°C2 external, T°C3 external, 30 VDC power supply - TEMP-30-41 Detection of internal temperature (T°C internal) and up to 3 external temperature through PT100 probes (T°C1 external, T°C2 external, T°C3 external)
