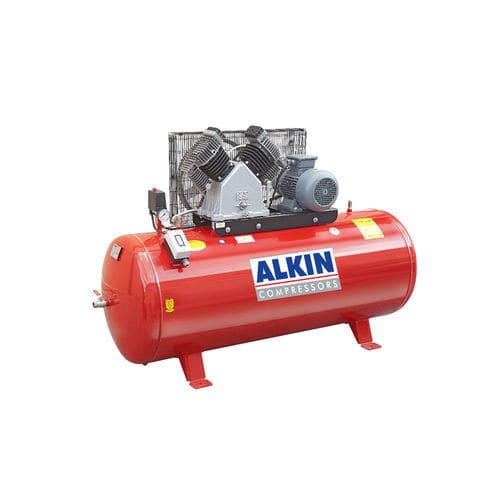

Reciprocating compressor 22 seriesairgaselectrically-powered
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Type
- air, gas
- Power source
- electrically-powered
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V, 380 V
- Other characteristics
- electric, low-pressure, two-stage
- Tank volume
Max.: 1,000 l
(264.2 gal)Min.: 200 l
(52.8 gal)- Pressure
12 bar
(174.05 psi)- Power
1.5 kW, 4 kW, 5.5 kW, 7.5 kW, 11 kW
(2.04 hp, 5.44 hp, 7.48 hp, 10.2 hp, 14.96 hp)- Length
132 cm, 150 cm, 170 cm, 192 cm
(51.97 in, 59.06 in, 66.93 in, 75.59 in)- Width
62 cm, 70 cm, 77 cm
(24.41 in, 27.56 in, 30.31 in)- Height
88 cm, 100 cm, 120 cm, 134 cm, 137 cm
(34.65 in, 39.37 in, 47.24 in, 52.76 in, 53.94 in)- Weight
130 kg, 203 kg, 290 kg, 295 kg, 350 kg
(286.6 lb, 447.5 lb, 639.3 lb, 650.4 lb, 771.6 lb)
Description
Because of their dependability and performance, low pressure reciprocating compressors are the best choice for your most delicate applications. They meet your industrial compressed air needs for many years, thanks to features the best price-performance advantage, minimal maintenance requirements, and optimum efficiency.
Standard Features
High Efficiency Electric Motor
Drive Mechanism Using V-belts and Pulleys (enclosure in accordance with CE norms)
Air Tank (in accordance with 2014/29/EU directive)
Manometers for Pressure Monitoring
Safety Valve at Each Stage
Cooling thanks to the air flow created by the inter and aftercoolers and the flywheel fan
Automatic Drain
Automatic Start/Stop
Oil Level Sight Gauge
Sectors
Shipyards
Pet Bottle Blowing Industries
Industrial Applications
Gas Filling Facilites
