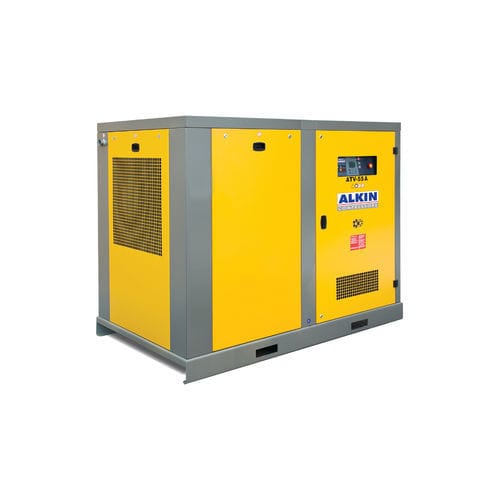

Screw compressor ALK D seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- cabinet, alarm
- Voltage
- 400 V
- Other characteristics
- electric
- Pressure
7 bar, 10 bar, 13 bar
(101.53 psi, 145.04 psi, 188.55 psi)- Flow
Max.: 55 m³/min
(1,942.31 ft³/min)Min.: 2.55 m³/min
(90.05 ft³/min)- Power
Max.: 315 kW
(428.28 hp)Min.: 22 kW
(29.91 hp)- Length
Max.: 3,400 mm
(133.86 in)Min.: 1,390 mm
(54.72 in)- Width
Max.: 1,390 mm
(54.72 in)Min.: 850 mm
(33.46 in)- Height
Max.: 2,636 mm
(103.78 in)Min.: 1,500 mm
(59.06 in)
Description
Oil injected air screw compressors are equipt with airend instead of pistons. Air is compressed by two rotating rotors between two lobs towards outlet. Oil injected airend which consists of torot with asimetric helical profile, bearings and housing are manufactured by state of art technology to provide maximum performance. It is called as “screw” because of the appereance of the rotors and it is the heart of the compressor.
Standard Features
High Performance L Profile Poly V Belt
Safety Valve
High Efficiency Electric Motor
Phase and Motor Protection Relays
Double Stage Full Oil Separation System with Immersion Type Separator
Fire Retardant Sound Insulation
Ergonomic Cabinet Design for Easy Access and Maintenance
High Pressure Error Alarm/Stopper
High Temperature Alarm/Stopper
