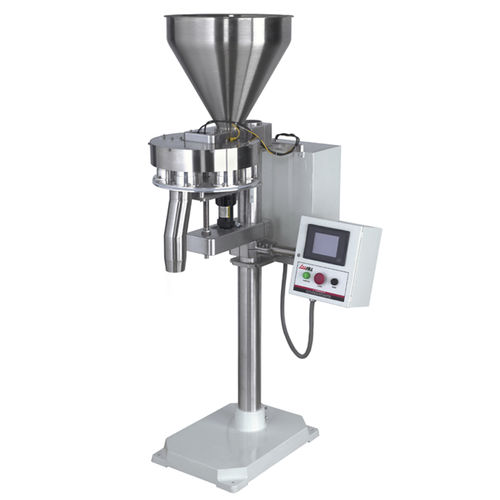

Cup filling machine SC seriessemi-automaticbottlefor powders
Add to favorites
Compare this product
Characteristics
- Operational mode
- semi-automatic
- Container type
- bottle, cup
- Product applications
- for powders, for granulates, coffee, rice, peas, for pasty products, fertilizer, for pellets
- Domain
- for the food industry
- Type
- volumetric
- Other characteristics
- PLC-controlled
- Throughput
Max.: 120 p/min
Min.: 0 p/min
- Capacity
Max.: 240 oz
(7 kg)Min.: 25 oz
Description
The SC/Series cup filler can accurately dispense free-flow products such as rice, popcorn, pecans, seeds, candy and more. Fill weights from .25oz to 15lbs can be achieved at speeds up to 120 per minute. Easily removable volume cups and servo position control are standard features on this line
Construction - Painted aluminum base, anodized aluminum, stainless steel contact parts, stainless construction available
Controls - Embedded controller, 7.00" color touch screen HMI, foot pedal initiation
Control Features - Individual control of all settings. Alphanumeric product naming. Containers per minute readout. Users / Maintenance / Supervisor Login. Statistical analysis of a shift run.
Hopper Capacity - Supply hopper capacity of 16 gal., other options available: hopper extensions and covers
Changeovers - Thumbscrews for quick access to product contact
Machine Dimensions - Need from engineering-standard VCSV600 dims
Storage - 100 product memory
Electrical Requirements - 220V/1ph/60HZ (standard other voltages available)
Pneumatic Requirements - None
