Cup filler PF series

for foodfor the food industryvolumetric

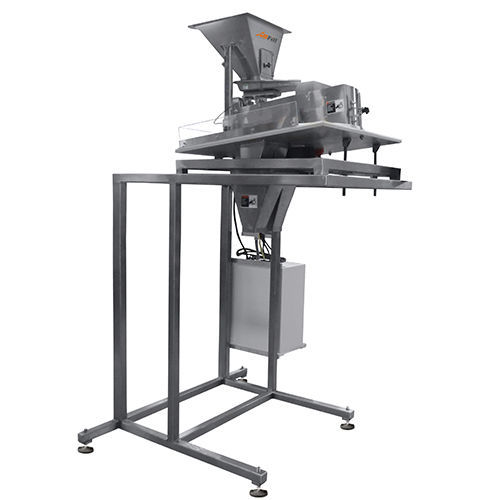

The PF/Series cup filler is designed to fill uniformed products such as paint balls, pretzel nuggets, and candy by count. Individual pockets for each item are machined into a delrin plate and indexed via a servo motor for the correct count. Fill counts as low as 1 can be achieved. Construction - Painted aluminum base, anodized aluminum, stainless steel contact parts, stainless construction is available Production Rates - Speeds ranging up to 120 CPM, depending on amount of pockets Controls - Embedded controller, 10.00" color touch screen HMI, foot pedal initiation Control Features - Individual control of all settings, alphanumeric product naming, containers per minute readout, Users / Maintenance / Supervisor Login, statistical analysis of a shift run Hopper Capacity - Supply hopper capacity of 1.5 cu. ft., other options available: hopper extensions and covers Machine Dimensions - Custom Storage - 100 product memory Electrical Requirements - 220V/1ph/60HZ (standard other voltages available) Changeovers - Fix mounted - tools required
