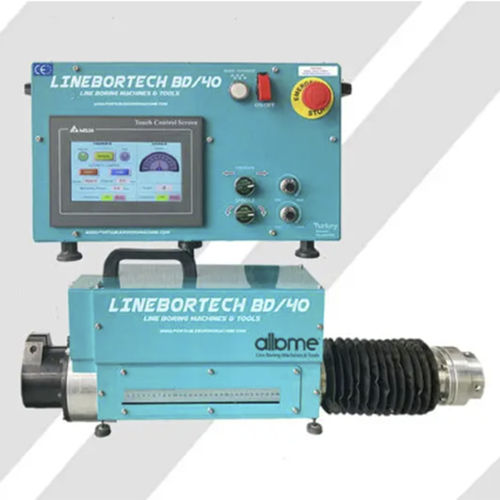

Welding portable line boring machine BD-40

facingmultifunction

Line Boring Machine BD/40 USAGE AREA BD / 40 model is controlled by 2 servo motors. The BM / 40's outstanding feature are its lightness, speed, and high torque. One person can easily mount the machine alone. The stroke movement is 230 mm. The machine has a total weight of 26 kg. Especially in steels (CK45) 52 HRC 42 mm to 400 mm diameter welding and turning process can be done easily. Application area; Intherenewal of the deformed circular holes that can not be removed, construction machinery, underground wateropeningshut-off valves, ship manufacturing industry, printing machines, roller bearings, construction machinery, and so on. Can be used in many fields TECHNICAL INFORMATION In-Hole TurningCapacity From 42mm up to 400mm Intra-Hole WeldCapacity From 65 mm up to 400 mm ELECTRONIC CONTROL PANEL Operating Voltage: AC 230v 50/60 Hz -10 amp. On /Off Switch Emergency Stop Button Left / Right Rotation Switch RotationSpeed potentiometer 10 Turn Forward / Backward Motion switch Feedspeedpotentiometer10 Turn Fast Motion Button reset button Control Screen ENGİNE POWER MOTOR(KW) MOTOR TYPE POWER TRANSMISSION TYPE BARA SHAFT ROTATION STROK ROTASYON(SPINDLE) MOTOR 1000W(1KW) AC SERVO MOTOR PLANET GEAR BOX REDUCER 0,1/230rpm SHAFT ADVANCED BACK MOVEMENT ENGINE 100W (0,1 KW) DC SERVO MOTOR PLANET GEAR BOX REDUCER 230mm/dk
